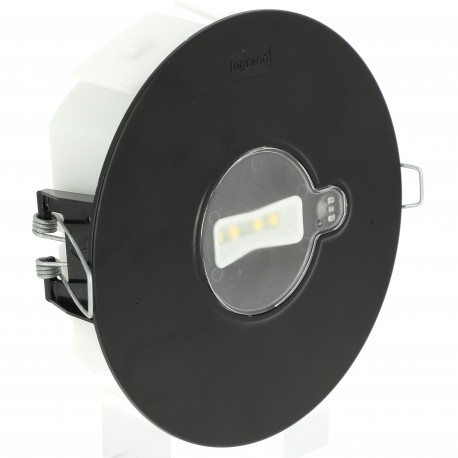

LEGRAND 660142BK 660142BK LEGRAND U22REDON 100LM 1 H P-NP AUT BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

660142BK LEGRAND U22REDON 100LM 1 H P-NP AUT BK

660142BK

660142BK

LEGRAND

1 Pcs.

U22REDON 100LM 1 H P-NP AUT BK URA SPOT PRO emergency luminaire black color UTOTEST - 100 lumens - 1h - Permanent/Non-permanent URA SPOT PRO black emergency luminaire UTOTEST - 100lm - 1h - P/NP

Automation > Emergency luminaire

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 660142BK LEGRAND U22REDON 100LM 1 H P-NP AUT BK is a recessed emergency luminaire designed to illuminate escape pathways and exits automatically when standard facility electrical power is disrupted. Built-in battery operation and LED light sources ensure dependable safety compliance across public and commercial spaces. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conductor cross section (EF000085): 1.5 mm²
  • With remote control (EF000483): No
  • Lamp type (EF002423): LED non-replaceable
  • Mounting method (EF000003): Built-in
  • Connection type (EF000124): Screw connection
  • RAL-number housing (EF012502): 9005
  • Material cover (EF004284): Plastic opal
  • Built-in height/depth (EF023518): 42 mm
  • With remote switch connection (EF007947): No
  • Max. system power (EF009347): 1.6 W
  • Colour temperature (EF009346): 5000 K
  • Rated luminous flux according to IEC 62722-2-1 (EF009349): 100 lm
  • Suitable for number of light sources (EF006436): 4
  • Number of lighting heads (EF004258): 1
  • Nominal current (EF009345): 43 mA
  • Impact strength (EF004293): IK07

More info

▲
AUTOTEST LED emergency luminaire - Permanent/Non-permanent (P/NP) - Black color - 100 lumens - Autonomy 1 hour - LED - Ni-Mh Battery - The luminaire performs a weekly automatic test that checks the status of the lamp and a quarterly automatic test that checks the battery status. - Communicate its status through the LEDs (green and yellow) for signaling.
Type of mountingInstallation
functionEmergency Lighting/Pathway Identification
Suitable for labelling typeOther
Type of indicatorOne side
With pictogramNo
Suitable for standby switchingYes
Suitable for continuous circuitYes
With remote switch connectionNo
With remote controlNo
Emergency function monitoring systemAutomatic self-test
Emergency Power Supply SystemPeripheral unit (single battery)
Battery qualityNimh
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources4
Lamp holdernone
Number of light heads1
Housing materialPlastic
RAL number of the case9005
Housing colorBlack
Cover materialPlastic, opal
Type of voltageAC/DC
Nominal Voltage230-230 V
Nominal current43-43 mA
Type of control equipmentCurrent-controlled LED service apparatus
Light distributorLens/Optics/Diffuser Panel
Constant luminous flux regulationYes
Protection Class (IP)IP42
Impact resistanceIK07
Protection class according to IEC 61140Ii
Luminaire with limited surface temperature "mark D" according to EN 60598-2-24No
Luminous flux in emergency mode100 lm
Nominal luminous flux according to IEC 62722-2-1100-100 lm
Max. system power1.6 W
Luminous flux in standby mode100 lm
Color Temperature5000-5700 K
Nominal Operating Time1-1 hrs
Height/Depth44.5 mm
Outer diameter125 mm
Mounting height/depth42 mm
Mounting Diameter110 mm
Type of wiringWith through-wiring
Number of poles5
Conductor cross-section1.5 mm²
Connection MethodThreaded connection
Connectable conductor cross-section1.5-2.5 mm²
Operating Temperature-5-35 °C
Storage temperature-10-50 °C
frequency50-60 Hz
Estimated bulb life100000 h
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Halogen-freeYes
Connection Cable TypeFlexible or rigid
With signal lampNo
Maximum cable entry diameter12 mm
Cable HolderNot applicable
Cable tie compatible withNot applicable
Control ModeWired
Contains battery and/or accumulatorYes
AddressableNo
IEC DesignationAAA
Battery or accumulator (Pack1)Accumulator (rechargeable)
Item Composition (Pack1)Nickel metal hydride
Pack Number11
Number of individual items (Pack1)3
Weight of an individual item (Pack1)13 g
Location of Pack1The product includes a battery
Regulatory Type (Pack1)I : Industrial (not portable)
Connected ObjectNo
