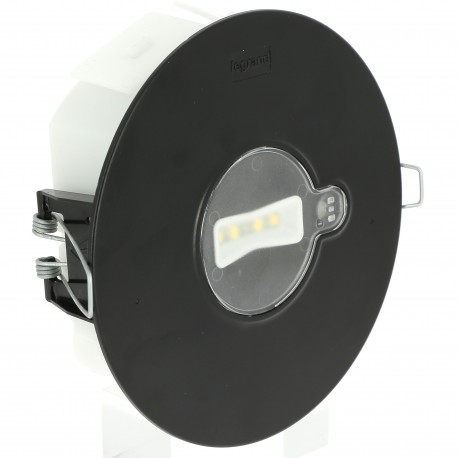

660045BK LEGRAND U22REDONDA 350LM 1H P-NP BK
660045BK
660045BK
LEGRAND
1 Pcs.
Automation > Emergency luminaire
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part 660045BK LEGRAND U22REDONDA 350LM 1H P-NP BK is a recessed emergency lighting luminaire built to maintain visibility in commercial environments during electrical grid failures. Recessed fixtures offer clean architectural integration while delivering dependable safety illumination.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conductor cross section (EF000085): 1.5 mm²
- With remote control (EF000483): No
- Lamp type (EF002423): LED non-replaceable
- Mounting method (EF000003): Built-in
- Connection type (EF000124): Screw connection
- RAL-number housing (EF012502): 9005
- Material cover (EF004284): Plastic opal
- Built-in height/depth (EF023518): 42 mm
- With remote switch connection (EF007947): No
- Max. system power (EF009347): 1.9 W
- Colour temperature (EF009346): 5000 K
- Rated luminous flux according to IEC 62722-2-1 (EF009349): 350 lm
- Suitable for number of light sources (EF006436): 8
- Number of lighting heads (EF004258): 1
- Nominal current (EF009345): 150 mA
- Impact strength (EF004293): IK07
More info
▲| Type of mounting | Installation |
|---|---|
| function | Emergency Lighting/Pathway Identification |
| Suitable for labelling type | Other |
| Type of indicator | One side |
| With pictogram | No |
| Suitable for standby switching | Yes |
| Suitable for continuous circuit | Yes |
| With remote switch connection | No |
| With remote control | No |
| Emergency function monitoring system | none |
| Emergency Power Supply System | Peripheral unit (single battery) |
| Battery quality | NiCd |
| Lamp | Non-interchangeable LED |
| With light source | Yes |
| Suitable for number of light sources | 8 |
| Lamp holder | none |
| Number of light heads | 1 |
| Housing material | Plastic |
| RAL number of the case | 9005 |
| Housing color | Black |
| Cover material | Plastic, opal |
| Type of voltage | AC/DC |
| Nominal Voltage | 230-230 V |
| Nominal current | 150-150 mA |
| Type of control equipment | Current-controlled LED service apparatus |
| Light distributor | Lens/Optics/Diffuser Panel |
| Constant luminous flux regulation | Yes |
| Protection Class (IP) | IP42 |
| Impact resistance | IK07 |
| Protection class according to IEC 61140 | Ii |
| Luminaire with limited surface temperature "mark D" according to EN 60598-2-24 | No |
| Luminous flux in emergency mode | 350 lm |
| Nominal luminous flux according to IEC 62722-2-1 | 350-350 lm |
| Max. system power | 1.9 W |
| Luminous flux in standby mode | 100 lm |
| Color Temperature | 5000-5700 K |
|---|---|
| Nominal Operating Time | 1-1 hrs |
| Height/Depth | 44.5 mm |
| Outer diameter | 125 mm |
| Mounting height/depth | 42 mm |
| Mounting Diameter | 110 mm |
| Type of wiring | With through-wiring |
| Number of poles | 5 |
| Conductor cross-section | 1.5 mm² |
| Connection Method | Threaded connection |
| Connectable conductor cross-section | 1.5-2.5 mm² |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-50 °C |
| frequency | 50-60 Hz |
| Estimated bulb life | 100000 h |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Connection Cable Type | Flexible or rigid |
| With signal lamp | No |
| Maximum cable entry diameter | 12 mm |
| Cable Holder | Not applicable |
| Cable tie compatible with | Not applicable |
| Control Mode | Wired |
| Contains battery and/or accumulator | Yes |
| Addressable | No |
| IEC Designation | Aa |
| Battery or accumulator (Pack1) | Accumulator (rechargeable) |
| Item Composition (Pack1) | Nickel metal hydride |
| Pack Number1 | 1 |
| Number of individual items (Pack1) | 4 |
| Weight of an individual item (Pack1) | 24 g |
| Location of Pack1 | The product includes a battery |
| Regulatory Type (Pack1) | I : Industrial (not portable) |
| Connected Object | No |
