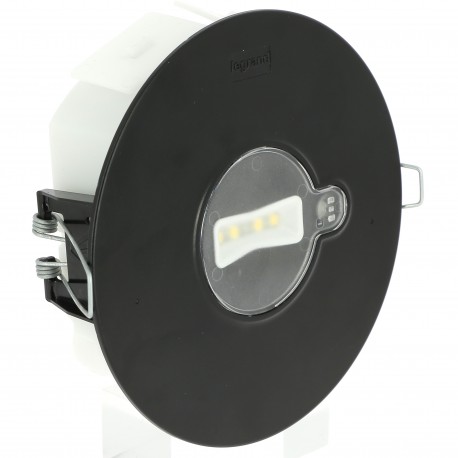

LEGRAND 660042BK 660042BK LEGRAND U22REDONDA 100LM 1H P-NP BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

660042BK LEGRAND U22REDONDA 100LM 1H P-NP BK

660042BK

660042BK

LEGRAND

1 Pcs.

U22REDONDA 100LM 1H P-NP BK URA SPOT PRO emergency luminaire black color - 100 lumens - 1h - Permanent/Non-permanent URA SPOT PRO black emergency luminaire - 100 lumens - 1h - P/NP

Automation > Emergency luminaire

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand U22REDONDA 100LM 1H P-NP BK is a recessed emergency lighting fixture utilized to maintain visibility along critical egress paths when primary power is lost. Such devices are standard safety components in modern architectural and industrial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conductor cross section (EF000085): 1.5 mm²
  • With remote control (EF000483): No
  • Lamp type (EF002423): LED non-replaceable
  • Mounting method (EF000003): Built-in
  • Connection type (EF000124): Screw connection
  • RAL-number housing (EF012502): 9005
  • Material cover (EF004284): Plastic opal
  • Built-in height/depth (EF023518): 42 mm
  • With remote switch connection (EF007947): No
  • Max. system power (EF009347): 2.5 W
  • Colour temperature (EF009346): 5000 K
  • Rated luminous flux according to IEC 62722-2-1 (EF009349): 100 lm
  • Suitable for number of light sources (EF006436): 4
  • Number of lighting heads (EF004258): 1
  • Nominal current (EF009345): 43 mA
  • Impact strength (EF004293): IK07

More info

▲
Standard LED emergency luminaire - Permanent / Non-permanent (P/NP) - Black color - 200 lumens - Autonomy 1 hour - LED - Ni-Cd battery - Maintenance tests are carried out manually.
Type of mountingInstallation
functionEmergency Lighting/Pathway Identification
Suitable for labelling typeOther
Type of indicatorOne side
With pictogramNo
Suitable for standby switchingYes
Suitable for continuous circuitYes
With remote switch connectionNo
With remote controlNo
Emergency function monitoring systemnone
Emergency Power Supply SystemPeripheral unit (single battery)
Battery qualityNiCd
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources4
Lamp holdernone
Number of light heads1
Housing materialPlastic
RAL number of the case9005
Housing colorBlack
Cover materialPlastic, opal
Type of voltageAC/DC
Nominal Voltage230-230 V
Nominal current43-43 mA
Type of control equipmentCurrent-controlled LED service apparatus
Light distributorLens/Optics/Diffuser Panel
Constant luminous flux regulationYes
Protection Class (IP)IP42
Impact resistanceIK07
Protection class according to IEC 61140Ii
Luminaire with limited surface temperature "mark D" according to EN 60598-2-24No
Luminous flux in emergency mode100 lm
Nominal luminous flux according to IEC 62722-2-1100-100 lm
Max. system power2.5 W
Luminous flux in standby mode100 lm
Color Temperature5000-5700 K
Nominal Operating Time1-1 hrs
Height/Depth44.5 mm
Outer diameter125 mm
Mounting height/depth42 mm
Mounting Diameter110 mm
Type of wiringWith through-wiring
Number of poles5
Conductor cross-section1.5 mm²
Connection MethodThreaded connection
Connectable conductor cross-section1.5-2.5 mm²
Operating Temperature-5-35 °C
Storage temperature-10-50 °C
frequency50-60 Hz
Estimated bulb life100000 h
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Halogen-freeYes
Connection Cable TypeFlexible or rigid
With signal lampNo
Maximum cable entry diameter12 mm
Cable HolderNot applicable
Cable tie compatible withNot applicable
Control ModeWired
Contains battery and/or accumulatorYes
AddressableNo
IEC DesignationAa
Battery or accumulator (Pack1)Accumulator (rechargeable)
Item Composition (Pack1)Nickel cadmium
Pack Number11
Number of individual items (Pack1)3
Weight of an individual item (Pack1)20 g
Location of Pack1The product includes a battery
Regulatory Type (Pack1)I : Industrial (not portable)
Connected ObjectNo
