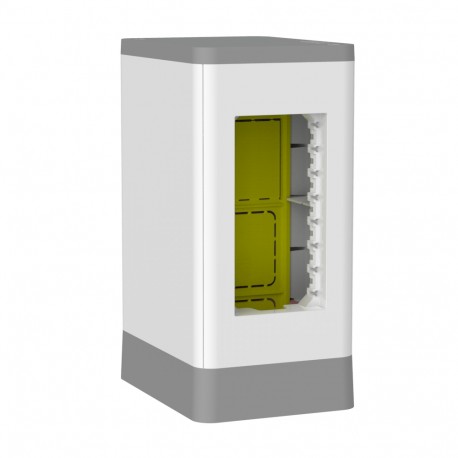

653200 LEGRAND COMPACT MINI COLUMN
653200
653200
LEGRAND
1 Pcs.
COMPACT MINI COLUMN
Compact floor mini column for cabling devices in commercial buildings (new and renovation)
Compact floor column for wiring devices
Automation > Installation column
COLUMN WIRING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
The compact mini column, with dimensions of 110x80x170mm, is ideal for wiring in commercial buildings, both in new projects and renovations. Its removable sides make it easy to access cables during installation. It offers IP40 protection against foreign bodies of 1 mm or more, and IK08 protection that guarantees resistance to impacts of up to 5 joules. It complies with the IEC 61084-2-4 standard and is made of halogen-free plastic, with the body in white (RAL 9003) and parts in light gray. It is fixed to the ground by 4 screws and has capacity for 4 modules, and can be expanded indefinitely with additional accessories. Cables can enter through conduits in concrete slabs or ground channels. In addition, it includes a partition to separate power and data circuits, which contributes to a tidy and safe installation.
| Column Shape | Rectangular |
|---|---|
| Model | One side |
| Prewired | No |
| Adjustable | No |
| Column Height | 170-340 mm |
| Column Depth | 110 mm |
| Column Width | 80 mm |
| Number of usable lids | 1 |
| Cover width | 80 mm |
| Top Depth | 110 mm |
| Attachment Type | Foot (base) |
| Changeable Location | Yes |
| Suitable for ceiling mounting | No |
| Floor Mount | Yes |
| Cable input | Under |
|---|---|
| Continuous profile | No |
| Installation column material | Plastic |
| Installation column material quality | Polyvinyl chloride (PVC) |
| Halogen-free service column material | Yes |
| Column surface | No treatment |
| Column color | White |
| RAL number of the column | 9003 |
| Upper material | Plastic |
| Upper Material Quality | Polyvinyl chloride (PVC) |
| Halogen-free upper material | Yes |
| Top cover | No treatment |
| Top Cover Color | Other |
| Number of partitions | 4 |
| Feature Name | Feature Value |
|---|---|
| Surface protection column (EF006400) | Untreated |
| Colour column (EF007757) | White |
| Suitable for ceiling mounting (EF021180) | No |
| Colour top cover (EF006405) | Other |
| Number of partitions (EF004446) | 4 |
| Material installation column (EF005413) | Plastic |
| Type of fastening (EF002442) | Stand (base) |
| Cover surface (EF008007) | Untreated |
| RAL-number column (EF008025) | 9003 |
| Place variable (EF006286) | Yes |
| Through-going profile (EF005690) | No |
| Adjustable (EF000996) | No |
| Cable entry (EF000537) | Below |
| Cover width (EF005146) | 80 mm |
| Material cover (EF005420) | Plastic |
| Column height (EF005222) | 170 mm |
| Model (EF000010) | Single-sided |
| Material quality installation column (EF008136) | Polyvinyl chloride (PVC) |
| Material quality cover (EF008137) | Polyvinyl chloride (PVC) |
| Material cover halogen free (EF008132) | Yes |
| Prewired (EF008110) | No |
| Column depth (EF012218) | 110 mm |
| Cover depth (EF012219) | 110 mm |
| Material installation column halogen free (EF008131) | Yes |
| Column width (EF012461) | 80 mm |
| Suitable for floor mounting (EF025108) | Yes |
| Pillar shape (EF006309) | Rectangular |
| Number of usable covers (EF002923) | 1 |
