View larger
Images are for illustrative purposes only. Please refer to data sheet for details

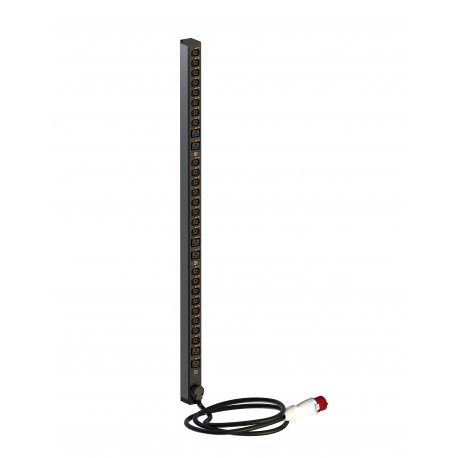

646965 LEGRAND PDU 3P 16A 24+6 C13/C19 IEC
646965
646965
LEGRAND
1 Pcs.
PDU 3P 16A 24+6 C13/C19 IEC
Basic PDU, three-phase 16A, 24xC13 + 6xC19 with IEC 60309 lock
Automation > Power distribution unit (PDU)
PDU
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
To provide ~ electrical power for IT equipment in 19" boxes. Equipped with magnetic circuit hydraulic protection with high current interrupting capacity. The ambient temperature does not affect the hydraulic magnetic circuit breakers. 330° rotating cable entry for perfect cable orientation without interfering with the cabinet. IEC 60320 C13 and C19 power outlets. Each C13 and C19 socket is gradually numbered from the input and equipped with a cable locking system to prevent any accidental disconnection (100 Newton holding force). High-density (HD) PDUs provide high-density C13 outlets to optimize the number of outlets and PDU length. Classification for high ambient temperature: 55°C. Aluminum chassis. Zero-U PDU for vertical cabinet mounting. They are supplied with standard and button type mounting brackets.
| Mounting Dimension (Standardized) | Metric |
|---|---|
| Mounting Size | 1215 mm |
| Assembly Direction | Vertical |
| Electrical connection | Wired connector |
| Running the electrical connection | EEC 16 A |
| Number of phases | 3 |
| Cable length | 3 m |
| Number of circuit breakers | 0 |
| Number of sockets with EEC 7/3 protective contact (type F) | 0 |
| Number of French Standard Sockets (Type E) | 30 |
| Number of sockets C13 | 24 |
| Number of sockets C19 | 6 |
| Number of C20 sockets | 0 |
| Number of sockets according to British standard (BS1363) | 0 |
| Number of Swiss Standard Type 13 sockets | 0 |
| Number of Swiss Standard Type 15 Power Sockets | 0 |
| Number of Swiss Standard Type 23 sockets | 0 |
| Number of Swiss Standard Type 25 sockets | 0 |
| Number of RJ45 connectors | 0 |
| Number of USB connections | 0 |
| Number of other power outlets | 0 |
| Longitude | 1203 mm |
| Width | 44.3 mm |
| Depth | 59.9 mm |
| Nominal intensity | 16 A |
| Supply voltage | 415 V |
| With surge protection module | No |
| Surge Category | 2 |
| EMC Filter | No |
| Switchable | No |
| With measuring device | No |
| Control function | No |
|---|---|
| SNMP | No |
| With screen | No |
| Evaluation | Other |
| With LED indicator | No |
| Fused | No |
| Ammeter | No |
| Temperature Measurement | No |
| Includes mounting hardware | Yes |
| Colour | Black |
| Impact resistance | Not applicable |
| Protection Class (IP) | IP20 |
| Operating Temperature | -5-60 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Nominal current | 16-16 A |
| frequency | 50-60 Hz |
| Standby consumption | 0 mA |
| Rated discharge current (8/20) | 0 kA |
| Display of markings on the connection terminals | Yes |
| RAL number | 9017 |
| Connection Method | Screw-on terminal |
| Terminal capacity | 1.5-6 mm² |
| Connection Cable Type | Flexible |
| Core cross-section | 2.5-2.5 mm² |
| Maximum cable entry diameter | 19 mm |
| Number of Circuit Breakers | 0 |
| Number of residual current circuit breakers | 0 |
| Number of CX sockets | 0 |
| Connected Object | No |
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | No |
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Temperature measurement (EF006229) | No |
| With mounting material (EF006009) | Yes |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Number of USB connections (EF008500) | 0 |
| Over voltage category (EF006785) | 2 |
| Control function (EF002685) | No |
| Evaluation (EF007670) | Other |
| With surge protection module (EF017068) | No |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Mounting direction (EF003824) | Vertical |
| With display (EF000458) | No |
| Electrical connection (EF003701) | Connecting cord with plug |
| Cable length (EF000536) | 3 m |
| Ampere meter (EF006555) | No |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| Number of phases (EF000351) | 3 |
| Switchable (EF008037) | No |
| Mounting dimension (standardised) (EF000397) | Metric |
| Number of C13 socket outlets (EF008511) | 24 |
| Number of other socket outlets (EF006579) | 0 |
| Number of C20 socket outlets (EF008512) | 0 |
| Number of C19 socket outlets (EF008513) | 6 |
| Number of socket outlets with earth pin (EF006578) | 30 |
| Type of electric connection (EF003961) | CEE 16 A |
| With fuse (EF006693) | No |
| Number of RJ45 connections (EF009462) | 0 |
| SNMP (EF005284) | No |
| Mains filter (EF000947) | No |
| Mounting size (EF020751) | 1215 mm |
| Supply voltage (EF000104) | 415 V |
| Depth (EF000049) | 59.9 mm |
| Colour (EF000007) | Black |
| Length (EF001438) | 1203 mm |
| Width (EF000008) | 44.3 mm |
| With meter (EF016044) | No |
