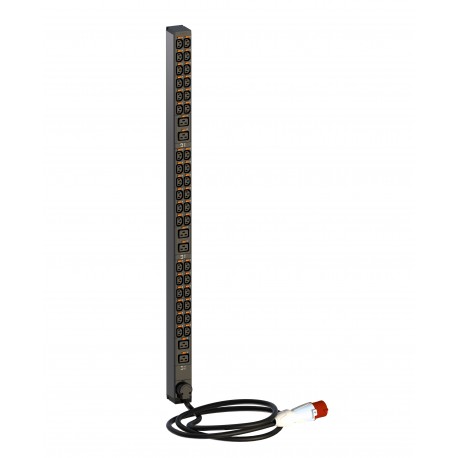

LEGRAND 646910 646910 LEGRAND PDU 0U 3P-16A 36C13+6C19 IEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646910 LEGRAND PDU 0U 3P-16A 36C13+6C19 IEC

646910

646910

LEGRAND

1 Pcs.

PDU 0U 3P-16A 36C13+6C19 IEC 16A vertical PDU 36 C13 sockets and 6 C19 sockets with IEC 60309 locking HD Basic PDU 36xC13 + 6xC19 16A sockets with IEC 60309 lock

Automation > Power distribution unit (PDU)
PDU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 646910 PDU 0U 3P-16A 36C13+6C19 IEC is a high-capacity power distribution strip engineered to route power vertically along the interior rails of industrial server racks. These units provide dependable multi-outlet connectivity for dense server installations without obstructing airflow. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With LED indication (EF005950): No
  • Number of socket outlets Swiss standard type 25 (EF011979): 0
  • Number of socket outlets Swiss standard type 23 (EF011978): 0
  • Number of socket outlets Swiss standard type 15 (EF011977): 0
  • Temperature measurement (EF006229): No
  • With mounting material (EF006009): Yes
  • Number of socket outlets Swiss standard type 13 (EF011975): 0
  • Number of USB connections (EF008500): 0
  • Over voltage category (EF006785): 2
  • Control function (EF002685): No
  • With surge protection module (EF017068): No
  • Number of socket outlets British Standard BS 1363 (EF012037): 0
  • Mounting direction (EF003824): Vertical
  • With display (EF000458): No
  • Electrical connection (EF003701): Connecting cord with plug
  • Cable length (EF000536): 3 m

More info

▲

specifications

Mounting Dimension (Standardized)Metric
Mounting Size1140 mm
Assembly DirectionVertical
Electrical connectionWired connector
Running the electrical connectionEEC 16 A
Number of phases3
Cable length3 m
Number of circuit breakers0
Number of sockets with EEC 7/3 protective contact (type F)0
Number of plugs with grounding pin42
Number of sockets C1336
Number of sockets C196
Number of C20 sockets0
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of RJ45 connectors0
Number of USB connections0
Number of other power outlets0
Longitude1128 mm
Width52 mm
Depth85 mm
Supply voltage415 V
With surge protection moduleNo
Surge Category2
EMC FilterNo
SwitchableNo
With measuring deviceNo
Control functionNo
SNMPNo
With screenNo
EvaluationOther
With LED indicatorNo
FusedNo
AmmeterNo
Temperature MeasurementNo
Includes mounting hardwareYes
ColourBlack
Impact resistanceNot applicable
Protection Class (IP)IP20
Operating Temperature-5-60 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal current16-16 A
frequency50-60 Hz
Standby consumption0 mA
Rated discharge current (8/20)0 kA
Display of markings on the connection terminalsYes
RAL number9017
Connection MethodScrew-on terminal
Terminal capacity1.5-6 mm²
Connection Cable TypeFlexible
Core cross-section2.5-2.5 mm²
Maximum cable entry diameter19 mm
Number of Circuit Breakers0
Number of residual current circuit breakers0
Number of CX sockets0
Connected ObjectNo
