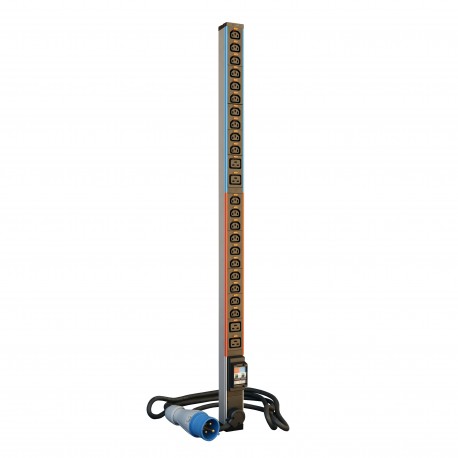

LEGRAND 646861 646861 LEGRAND PDU V 20+4 C13+C19 C/U +MCB+CL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646861 LEGRAND PDU V 20+4 C13+C19 C/U +MCB+CL

646861

646861

LEGRAND

1 Pcs.

PDU V 20+4 C13+C19 C/U +MCB+CL Zero-U single phase PDU LCS³ - 20xC13 + 4xC19 - IEC 60320 standard - 2P+E plug 0-U PDU with 20 C13 bases, 4 C19 bases and 3m cable with IEC 32A plug

Automation > Power distribution unit (PDU)
PDU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)16.744
  • Weight (g)3 477.00
Product characteristics
PDU Basic
IEC 60320 standard
  • 20 C13 outlets + 4 C19 outlets with cord locking system
  • 3 m power supply cord with IEC60309 32 A 2P+E plug
General characteristics
Legrand cabling system LCS³ energy Distribution - single-phase Zero-U Basic Power Distribution Units (PDU)
  • To provide ~ electric power for IT equipment in 19'' enclosures
  • Single phase Zero-U PDUs for vertical mounting in the cabinet
  • 230 V - 50/60 Hz power supply
  • PDUs with 2 circuits protected by 16 A uni + neutral MCB in a support with projecting edges to avoid accidental breakdown. Each circuit is identified by color coding. The total number of outlets is distributed equally between the 2 circuits. 2P+E outlets: C13 and C19 standard outlets, French/German/British standards outlets equipped with safety shutters, French/German standards outlets inclined at 55°
  • 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet
  • C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
  • Delivered with 2 sets of metallic mounting brackets: button brackets (for quick fixing and variable pitch) and standard brackets (for screw fixing)
  • Black modules (outlets and functions)
  • Aluminium profile

ETIM for 646861 Domestic wiring accessories and controls (EC002762)
Feature Name Feature Value
With LED indication (EF005950) No
Number of socket outlets Swiss standard type 25 (EF011979) 0
Number of socket outlets Swiss standard type 23 (EF011978) 0
Number of socket outlets Swiss standard type 15 (EF011977) 0
Temperature measurement (EF006229) No
With mounting material (EF006009) Yes
Number of socket outlets Swiss standard type 13 (EF011975) 0
Over voltage category (EF006785) 2
Evaluation (EF007670) Local
Number of socket outlets British Standard BS 1363 (EF012037) 0
Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) 0
Mounting direction (EF003824) Vertical
With display (EF000458) No
Electrical connection (EF003701) Connecting cord with plug
Cable length (EF000536) 3 m
Ampere meter (EF006555) No
Number of miniature circuit breakers (MCB) (EF005564) 2
Number of height units (EF003561) 25
Switchable (EF008037) No
Mounting dimension (standardised) (EF000397) Metric
Number of C13 socket outlets (EF008511) 20
Number of other socket outlets (EF006579) 0
Number of C20 socket outlets (EF008512) 0
Number of C19 socket outlets (EF008513) 4
Number of socket outlets with earth pin (EF006578) 0
Type of electric connection (EF003961) CEE 32 A
With fuse (EF006693) No
SNMP (EF005284) No
Mains filter (EF000947) No
Mounting size (EF020751) 1097 mm
Supply voltage (EF000104) 230 V
Depth (EF000049) 52.5 mm
Colour (EF000007) Black
Length (EF001438) 1114 mm
Width (EF000008) 52 mm
