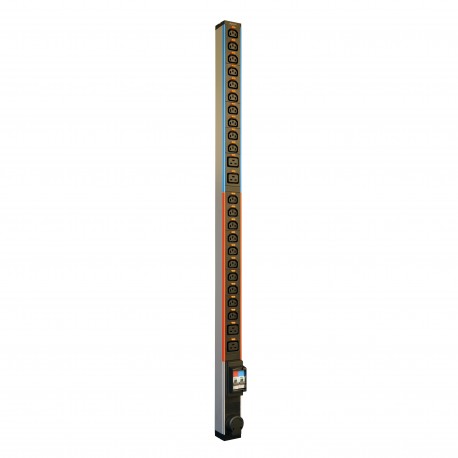

LEGRAND 646860 646860 LEGRAND PDU V 20+4 C13+C19 C/RET +MCB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646860 LEGRAND PDU V 20+4 C13+C19 C/RET +MCB

646860

646860

LEGRAND

1 Pcs.

PDU V 20+4 C13+C19 C/RET +MCB Zero-U single phase PDU LCS³ - 20xC13 + 4xC19 -IEC 60320 standard -for terminal block 0-U PDU with 20 C13 bases, 4 C19 bases and 6mm connection terminals

Automation > Power distribution unit (PDU)
PDU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 646860 PDU V 20+4 C13+C19 C/RET +MCB is a vertical rack power distribution unit engineered to supply high-density electrical power within server cabinets and network enclosures. Rack PDUs of this classification distribute stable power safely to multiple mounted IT devices while incorporating circuit protection mechanisms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With LED indication (EF005950): No
  • Number of socket outlets Swiss standard type 25 (EF011979): 0
  • Number of socket outlets Swiss standard type 23 (EF011978): 0
  • Number of socket outlets Swiss standard type 15 (EF011977): 0
  • Temperature measurement (EF006229): No
  • With mounting material (EF006009): Yes
  • Number of socket outlets Swiss standard type 13 (EF011975): 0
  • Over voltage category (EF006785): 2
  • Evaluation (EF007670): Local
  • Number of socket outlets British Standard BS 1363 (EF012037): 0
  • Mounting direction (EF003824): Vertical
  • With display (EF000458): No
  • Electrical connection (EF003701): Screwed terminal
  • Cable length (EF000536): 0 m
  • Ampere meter (EF006555): No
  • Number of miniature circuit breakers (MCB) (EF005564): 2

More info

▲
  • Pack (number of units)1
  • Volume (dm3)13.384
  • Weight (g)2 153.00
Product characteristics
PDU Basic
IEC 60320 standard
  • 20 C13 outlets + 4 C19 outlets with cord locking system
  • Connection on terminal block up to 6 mm²
General characteristics
Legrand cabling system LCS³ energy Distribution - single-phase Zero-U Basic Power Distribution Units (PDU)
  • To provide ~ electric power for IT equipment in 19'' enclosures
  • Single phase Zero-U PDUs for vertical mounting in the cabinet
  • 230 V - 50/60 Hz power supply
  • PDUs with 2 circuits protected by 16 A uni + neutral MCB in a support with projecting edges to avoid accidental breakdown. Each circuit is identified by color coding. The total number of outlets is distributed equally between the 2 circuits. 2P+E outlets: C13 and C19 standard outlets, French/German/British standards outlets equipped with safety shutters, French/German standards outlets inclined at 55°
  • 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet
  • C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
  • Delivered with 2 sets of metallic mounting brackets: button brackets (for quick fixing and variable pitch) and standard brackets (for screw fixing)
  • Black modules (outlets and functions)
  • Aluminium profile
