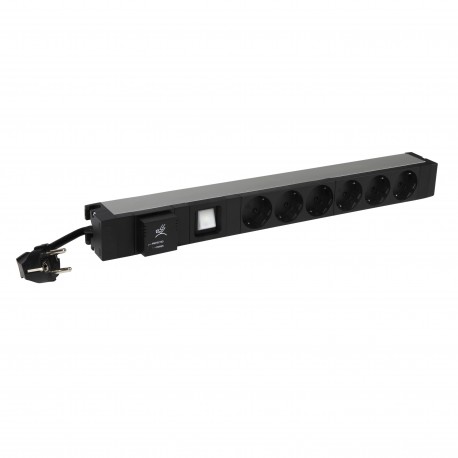

LEGRAND 646836 646836 LEGRAND PDU 19" 6 SCHUKO +INT +PROT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646836 LEGRAND PDU 19" 6 SCHUKO +INT +PROT

646836

646836

LEGRAND

1 Pcs.

PDU 19" 6 SCHUKO +INT +PROT 19" PDU LCS³ - 1 U - 6 x 2P+E - German standard - with SPD 1-U 19" PDU with 6 Schuko bases, surge protection and 3m cable

Automation > Power distribution unit (PDU)
PDU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.233
  • Weight (g)1 037.00
Product characteristics
19” Basic PDU with surge protection
  • Protect against mains overvoltages while keeping outlets energised
  • With light indicators:
    • one LED (white) gives information whether the PDU is supplied with power or not
    • one LED (green) indicates when surge protection module is efficient or must be replaced
  • Equipped with hotswappable surge protection module Cat.No 6 468 97: even when the module is being replaced, the PDU and its outlets are still powered on
  • With switch
  • 3 m power supply cord with 16 A 2P+E French/German plug
  • 6 outlets - German standard
General characteristics
Legrand cabling system LCS³ energy distribution - 1U Basic Power Distribution Units (PDU)
  • To provide ~ electric power for IT equipment in 19'' enclosures
  • 230 V - 50/60 Hz power supply
  • 1U aluminium profile
  • End cap with metallic brackets and cable holder shape
  • Quick fixing (no screws) on 19'' fixing centers. Can also be installed vertically by reverting the brackets (no screws)
  • 2P+E outlets:
    • C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
    • French, German and British standard outlets are equipped with safety shutters
    • French and German standard outlets are inclined at 55°
  • Black modules (outlets and functions)

ETIM for 646836 Domestic wiring accessories and controls (EC002762)
Feature Name Feature Value
With LED indication (EF005950) Yes
Number of socket outlets Swiss standard type 25 (EF011979) 0
Number of socket outlets Swiss standard type 23 (EF011978) 0
Number of socket outlets Swiss standard type 15 (EF011977) 0
Temperature measurement (EF006229) No
With mounting material (EF006009) Yes
Number of socket outlets Swiss standard type 13 (EF011975) 0
Over voltage category (EF006785) 2
Evaluation (EF007670) Local
Number of socket outlets British Standard BS 1363 (EF012037) 0
Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) 6
Mounting direction (EF003824) Horizontal/vertical
With display (EF000458) No
Electrical connection (EF003701) Connecting cord with plug
Cable length (EF000536) 3 m
Ampere meter (EF006555) No
Number of miniature circuit breakers (MCB) (EF005564) 0
Number of height units (EF003561) 1
Switchable (EF008037) No
Mounting dimension (standardised) (EF000397) 482.6 mm (19 inch)
Number of C13 socket outlets (EF008511) 0
Number of other socket outlets (EF006579) 0
Number of C20 socket outlets (EF008512) 0
Number of C19 socket outlets (EF008513) 0
Number of socket outlets with earth pin (EF006578) 0
With fuse (EF006693) No
SNMP (EF005284) No
Mains filter (EF000947) No
Mounting size (EF020751) 465.1 mm
Supply voltage (EF000104) 230 V
Depth (EF000049) 52.5 mm
Colour (EF000007) Black
Length (EF001438) 465 mm
Width (EF000008) 44.3 mm
