View larger
Images are for illustrative purposes only. Please refer to data sheet for details

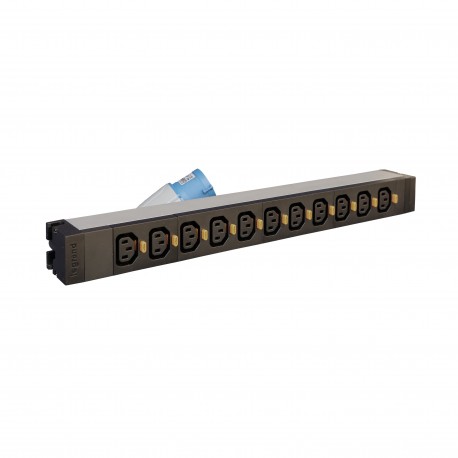

646815 LEGRAND PDU 19" 12 C13 C/RET +CLAV IEC
646815
646815
LEGRAND
1 Pcs.
PDU 19" 12 C13 C/RET +CLAV IEC
19" PDU LCS³ - 1 U - 12 x C13 - IEC 60320 standard
1-U 19" PDU with 12 C13 bases and 3m cable with IEC 16A plug
Automation > Power distribution unit (PDU)
PDU
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)3.233
- Weight (g)1 152.00
Product characteristics
19” - PDU BasicIEC 60320 standard
- Connection on terminal block (except Cat.No 6 468 15)
- 12 C13 outlets with cord locking system
- 3 m power supply cord with IEC 60309 16 A 2P+E plug
General characteristics
Legrand cabling system LCS³ energy Distribution - horizontal (1U/2U) Basic Power Distribution Units (PDU)- To provide ~ electric power for IT equipment in 19'' enclosures
- 230 V - 50/60 Hz power supply
- 1U aluminium profile
- End cap with metallic brackets and cable holder shape
- Quick fixing (no screws) on 19'' fixing centers. Can also be installed vertically by reverting the brackets (no screws)
- 2P+E outlets:
- C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
- French, German and British standard outlets are equipped with safety shutters
- French and German standard outlets are inclined at 55°
- Black modules (outlets and functions)
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | No |
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Temperature measurement (EF006229) | No |
| With mounting material (EF006009) | Yes |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Over voltage category (EF006785) | 2 |
| Evaluation (EF007670) | Local |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Mounting direction (EF003824) | Horizontal/vertical |
| With display (EF000458) | No |
| Electrical connection (EF003701) | Connecting cord with plug |
| Cable length (EF000536) | 3 m |
| Ampere meter (EF006555) | No |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| Number of height units (EF003561) | 1 |
| Switchable (EF008037) | No |
| Mounting dimension (standardised) (EF000397) | 482.6 mm (19 inch) |
| Number of C13 socket outlets (EF008511) | 12 |
| Number of other socket outlets (EF006579) | 0 |
| Number of C20 socket outlets (EF008512) | 0 |
| Number of C19 socket outlets (EF008513) | 0 |
| Number of socket outlets with earth pin (EF006578) | 0 |
| Type of electric connection (EF003961) | CEE 16 A |
| With fuse (EF006693) | No |
| SNMP (EF005284) | No |
| Mains filter (EF000947) | No |
| Mounting size (EF020751) | 465.1 mm |
| Supply voltage (EF000104) | 230 V |
| Depth (EF000049) | 52.5 mm |
| Colour (EF000007) | Black |
| Length (EF001438) | 465 mm |
| Width (EF000008) | 44.3 mm |
