646768 LEGRAND LKO-CABINET 42U 8X10 2-DOOR
646768
646768
LEGRAND
1 Pcs.
Automation > Network/server enclosure
ENCLOSURES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

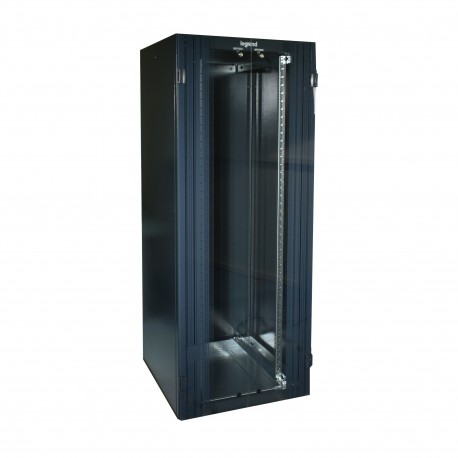

Legrand 646768 LKO-cabinet 42U 8x10 2-door is a floor-standing enclosure designed to house and protect networking equipment, patch panels, and server hardware in industrial telecommunication spaces. Enclosures of this classification maintain organized wiring layouts while shielding sensitive components from environmental dust and physical contact.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Front door locking system: One point
- Height: 2026 mm
- Degree of protection (IP): IP20
- Material: Steel
- With front door: Yes
- Number of doors: 2
- Surface finishing: Powder coated
- Demountable: Yes
- With roof plate: Yes
- With base: No
- With earthing: Yes
- Material front door: Glass
- With vertical cable management: No
- Max. load capacity: 400 kg
- RAL-number: 7016
- Model: With permanent frame
More info
▲- Pack (number of units)1
- Volume (dm3)1 810.93
- Weight (g)110 100.00
- IP 20 - IK 08 baying cabinets
- Reversible front glass door with screen printing. Removable side and rear panels
- Panels with automatic equipotential connection
- 4 sides locked with key lock
- Equipped with 2 x 19'' uprights with U marking and adjustable in depth
- Pre-cut cable entries (top and bottom). To be fitted with brush cable entry Cat.No 6 464 28
- Cut-out at the top for fan kit
- Equipped with levelling feet
- Loading capacity: 400 kg
- Anthracite grey RAL 7016
- Ready-assembled
- Capacity: : 42 U
- Height: : 2026 mm
- Width: : 800 mm
- Depth: : 1000 mm
