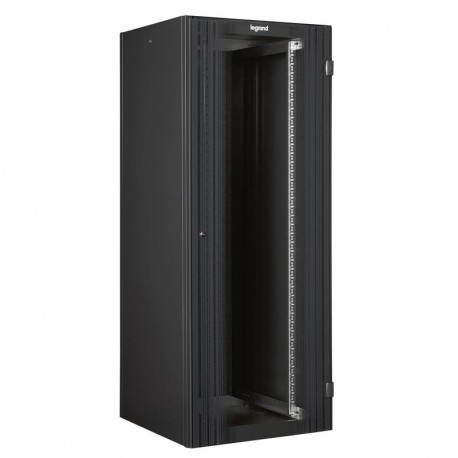

646763 LEGRAND LKO-CABINET 42U 800X600
646763
646763
LEGRAND
1 Pcs.
Automation > Network/server enclosure
ENCLOSURES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Housing networking apparatus and server hardware safely, the Legrand LKO-cabinet offers robust protection for critical IT infrastructure.
Enclosures of this style provide centralized containment for patch panels, switches, and rack-mounted automation devices in commercial wiring closets.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Front door locking system (EF011934): One point
- Height (EF000040): 2026 mm
- Degree of protection (IP) (EF005474): IP20
- Material (EF002169): Steel
- With front door (EF007377): Yes
- Number of doors (EF000122): 1
- Surface finishing (EF006569): Powder coated
- Demountable (EF007551): Yes
- With roof plate (EF007375): Yes
- With base (EF005070): No
- With earthing (EF007376): Yes
- Material front door (EF011937): Glass
- With vertical cable management (EF011936): No
- Max. load capacity (EF000258): 400 kg
- RAL-number (EF000116): 7016
- Model (EF000010): With permanent frame
More info
▲- Pack (number of units)1
- Volume (dm3)1 264.788
- Weight (g)110 100.00
- IP 20 - IK 08 baying cabinets
- Reversible front glass door with screen printing. Removable side and rear panels
- Panels with automatic equipotential connection
- 4 sides locked with key lock
- Equipped with 2 x 19'' uprights with U marking and adjustable in depth
- Pre-cut cable entries (top and bottom). To be fitted with brush cable entry Cat.No 6 464 28
- Cut-out at the top for fan kit
- Equipped with levelling feet
- Loading capacity: 400 kg
- Anthracite grey RAL 7016
- Ready-assembled
- Capacity: : 42 U
- Height: : 2026 mm
- Width: : 800 mm
- Depth: : 600 mm
