646761 LEGRAND LKO-CABINET 42U 600X800
646761
646761
LEGRAND
1 Pcs.
Automation > Network/server enclosure
ENCLOSURES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

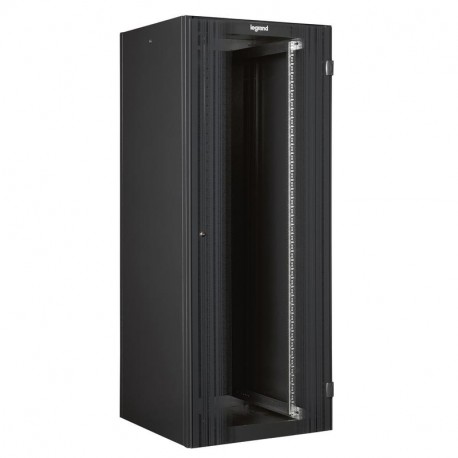

Legrand 646761 LKO-CABINET 42U 600X800 is a standard floor-standing server cabinet applied in IT networks and control rooms to house patch panels, switches, and computing hardware. Cabinets protect internal components from ambient dust while offering secure, centralized equipment organization.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Front door locking system (EF011934): One point
- Height (EF000040): 2026 mm
- Degree of protection (IP) (EF005474): IP20
- Material (EF002169): Steel
- With front door (EF007377): Yes
- Number of doors (EF000122): 1
- Surface finishing (EF006569): Powder coated
- Demountable (EF007551): Yes
- With roof plate (EF007375): Yes
- With base (EF005070): No
- With earthing (EF007376): Yes
- Material front door (EF011937): Glass
- With vertical cable management (EF011936): No
- Max. load capacity (EF000258): 400 kg
- RAL-number (EF000116): 7016
- Model (EF000010): With permanent frame
More info
▲- Pack (number of units)1
- Volume (dm3)1 238.976
- Weight (g)102 600.00
- IP 20 - IK 08 baying cabinets
- Reversible front glass door with screen printing. Removable side and rear panels
- Panels with automatic equipotential connection
- 4 sides locked with key lock
- Equipped with 2 x 19'' uprights with U marking and adjustable in depth
- Pre-cut cable entries (top and bottom). To be fitted with brush cable entry Cat.No 6 464 28
- Cut-out at the top for fan kit
- Equipped with levelling feet
- Loading capacity: 400 kg
- Anthracite grey RAL 7016
- Ready-assembled
- Capacity: : 42 U
- Height: : 2026 mm
- Width: : 600 mm
- Depth: : 800 mm
