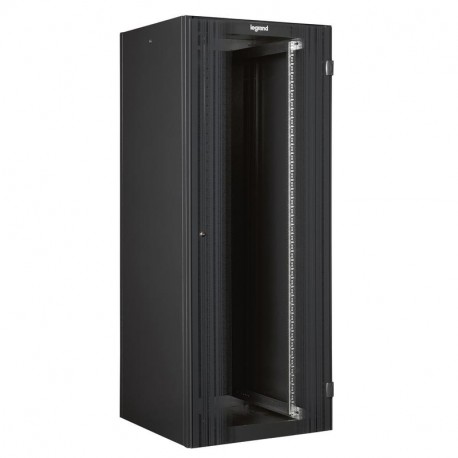

LEGRAND 646760 646760 LEGRAND LKO-CABINET 42U 600X600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646760 LEGRAND LKO-CABINET 42U 600X600

646760

646760

LEGRAND

1 Pcs.

LKO-CABINET 42U 600X600 Linkeo 19" freestanding cabinet with single front glass door -capacity 42U - dimensions 2026x600x600 mm -ready-assembled 19" Linkeo Cabinet - Single front door - 42U - 600x600mm

Automation > Network/server enclosure
ENCLOSURES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Standing floor cabinets such as the Legrand 646760 server rack provide large-scale housing for data center servers, patch panels, and heavy networking hardware. Floor-standing enclosures manage complex cable distribution while securing high-capacity equipment loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Front door locking system (EF011934): One point
  • Height (EF000040): 2026 mm
  • Degree of protection (IP) (EF005474): IP20
  • Material (EF002169): Steel
  • With front door (EF007377): Yes
  • Number of doors (EF000122): 1
  • Surface finishing (EF006569): Powder coated
  • Demountable (EF007551): Yes
  • With roof plate (EF007375): Yes
  • With base (EF005070): No
  • With earthing (EF007376): Yes
  • Material front door (EF011937): Glass
  • With vertical cable management (EF011936): No
  • Max. load capacity (EF000258): 400 kg
  • RAL-number (EF000116): 7016
  • Model (EF000010): With permanent frame

More info

▲
  • Pack (number of units)1
  • Volume (dm3)963.648
  • Weight (g)90 700.00
Product characteristics
Linkeo 19'' cabinets
  • IP 20 - IK 08 baying cabinets
  • Reversible front glass door with screen printing. Removable side and rear panels
  • Panels with automatic equipotential connection
  • 4 sides locked with key lock
  • Equipped with 2 x 19'' uprights with U marking and adjustable in depth
  • Pre-cut cable entries (top and bottom). To be fitted with brush cable entry Cat.No 6 464 28
  • Cut-out at the top for fan kit
  • Equipped with levelling feet
  • Loading capacity: 400 kg
  • Anthracite grey RAL 7016
Single front glass door
  • Ready-assembled
  • Capacity: : 42 U
  • Height: : 2026 mm
  • Width: : 600 mm
  • Depth: : 600 mm
General characteristics
Linkeo 19'' freestanding cabinets - cabinets and equipment

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
