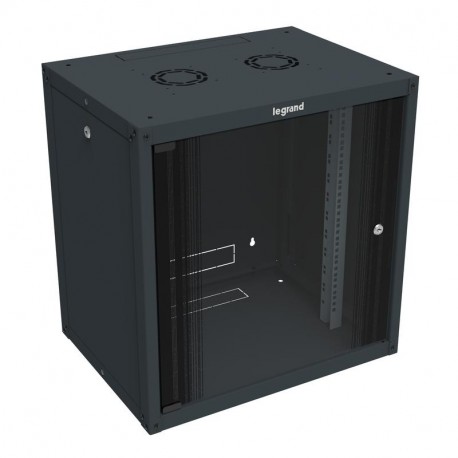

LEGRAND 646280 646280 LEGRAND LKO-ARM-MUR 19P 6U 450 PDESM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646280 LEGRAND LKO-ARM-MUR 19P 6U 450 PDESM

646280

646280

LEGRAND

1 Pcs.

LKO-ARM-MUR 19P 6U 450 PDESM Wall 19' fixed - detachable Panel - P450mm - 6U - A600mm - 18 Kg Wall 19" fixed - Removable panel - P450mm - 6U - H 600mm - 18Kg

Automation > Network cabinet
ENCLOSURES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand wall mounted enclosure, item 646280, offers reliable physical protection for modular network nodes and automation controllers in commercial spaces. Enclosed wall boxes keep sensitive electronic components secure and systematically arranged.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 338 mm
  • Model (EF000010): With permanent frame
  • Degree of protection (IP) (EF005474): IP20
  • Number of height units (EF003561): 6
  • Material (EF002169): Steel
  • With front door (EF007377): Yes
  • Number of doors (EF000122): 1
  • Mounting level (EF006795): Front
  • Surface finishing (EF006569): Powder coated
  • Type of profile rail (EF006796): L-shaped
  • Modular spacing (EF008458): 482.6 mm (19 inch)
  • Demountable (EF007551): Yes
  • With roof plate (EF007375): Yes
  • With earthing (EF007376): Yes
  • With sidewall (EF007383): Yes
  • Depth (EF000049): 450 mm

More info

▲

Product features

IP 20 - IK 08 Cabinets murals with door to flat reversible with safety glass and lock, built-in Equipped with: - 2 uprights with marking of the U and are adjustable in depth - 3 cable entries pretroqueladas (top, bottom, and rear) - 1 plate with brush for cable entry - top slots for natural ventilation, it can be equipped with fan - kit grounding Color black RAL 7016

General characteristics

Cabinets, murals Linkeo Cabinets and accessories
