646251 LEGRAND LKO-ARM-MUR 19P 9U 450 FPACK
646251
646251
LEGRAND
1 Pcs.
Automation > Network cabinet
ENCLOSURES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

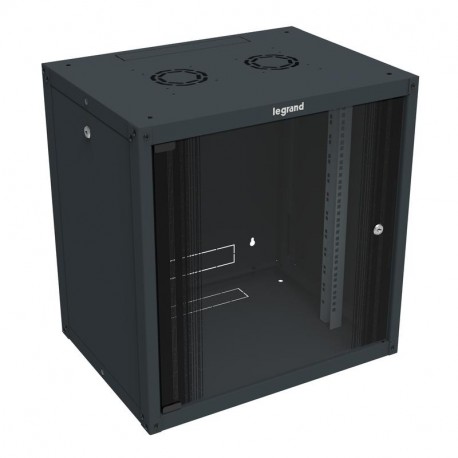

Enclosing 19-inch rack components safely, the Legrand 646251 wall mounted enclosure delivers organized structural support for communications equipment. Wall cabinets protect sensitive network hardware from environmental elements while optimizing facility floor space.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 492 mm
- Model (EF000010): With permanent frame
- Degree of protection (IP) (EF005474): IP20
- Number of height units (EF003561): 9
- Material (EF002169): Steel
- With front door (EF007377): Yes
- Number of doors (EF000122): 1
- Mounting level (EF006795): Front
- Surface finishing (EF006569): Powder coated
- Type of profile rail (EF006796): L-shaped
- Modular spacing (EF008458): 482.6 mm (19 inch)
- Demountable (EF007551): Yes
- With roof plate (EF007375): Yes
- With earthing (EF007376): Yes
- With sidewall (EF007383): Yes
- Depth (EF000049): 458 mm
More info
▲- Pack (number of units)1
- Volume (dm3)71.808
- Weight (g)22 000.00
Removable side panels
- For easy access at the side of the cabinet
- Opening with a lock (same key as the door)
- Delivered flatpack
- Depth 450 mm
- Capacity: : 9 U
- Height: : 471 mm
- Width: : 600 mm
- Loading capacity: : 27 kg
- IP 20 - IK 08
- Equipped with:
- 1 reversible door made of screen-printed safety glass and with integrated lock
- 2 x 19'' uprights with U marking and adjustable in depth
- 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
- panels with automatic grounding (ready assembled version)
- earthing kit (flatpack version)
- Anthracite grey RAL 7016
