View larger
Images are for illustrative purposes only. Please refer to data sheet for details

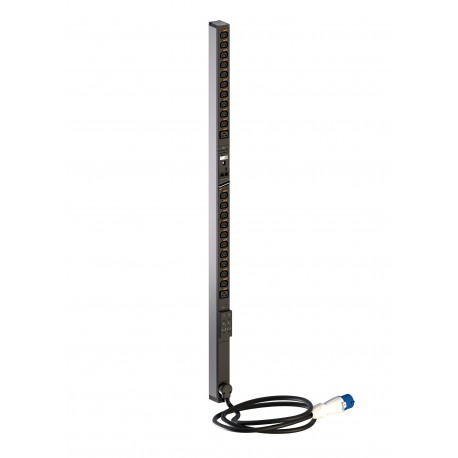

646122 LEGRAND PDU LK I B 0U 1P32A 20C13 2C19
646122
646122
LEGRAND
1 Pcs.
PDU LK I B 0U 1P32A 20C13 2C19
Smart PDU, Switched (Base Version), Zero-U, Single-Phase 32A, 20 x C13 + 2 x C19 Sockets, with Cable Lock
0U SWITCHING BASE PDU, 1 PHASE 32A, 20+2 C13/C19 LOCKING SOCKETS, IEC 60309
Automation > Power distribution unit (PDU)
PDU
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Mounting Dimension (Standardized) | Metric |
|---|---|
| Mounting Size | 1276 mm |
| Assembly Direction | Vertical |
| Electrical connection | Wired connector |
| Running the electrical connection | EEC 32 A |
| Number of phases | 1 |
| Cable length | 3 m |
| Number of circuit breakers | 2 |
| Number of sockets with EEC 7/3 protective contact (type F) | 0 |
| Number of French Standard Sockets (Type E) | 22 |
| Number of sockets C13 | 20 |
| Number of sockets C19 | 2 |
| Number of C20 sockets | 0 |
| Number of sockets according to British standard (BS1363) | 0 |
| Number of Swiss Standard Type 13 sockets | 0 |
| Number of Swiss Standard Type 15 Power Sockets | 0 |
| Number of Swiss Standard Type 23 sockets | 0 |
| Number of Swiss Standard Type 25 sockets | 0 |
| Number of RJ45 connectors | 2 |
| Number of USB connections | 0 |
| Number of other power outlets | 0 |
| Longitude | 1264 mm |
| Width | 44.3 mm |
| Depth | 65.9 mm |
| Nominal intensity | 32 A |
| Supply voltage | 230 V |
| With surge protection module | No |
| Surge Category | 2 |
| EMC Filter | No |
| Switchable | Yes |
| With measuring device | Yes |
| Control function | Yes |
| SNMP | Yes |
| With screen | No |
| Evaluation | Other |
|---|---|
| With LED indicator | Yes |
| Fused | No |
| Ammeter | Yes |
| Temperature Measurement | Yes |
| Includes mounting hardware | Yes |
| Colour | Black |
| Impact resistance | Not applicable |
| Protection Class (IP) | IP40 |
| Operating Temperature | -5-60 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Nominal current | 32-32 A |
| frequency | 50-60 Hz |
| Display of markings on the connection terminals | No |
| RAL number | 9017 |
| Connection Method | Screw-on terminal |
| Terminal capacity | 6-6 mm² |
| Connection Cable Type | Flexible |
| Core cross-section | 6-6 mm² |
| Maximum cable entry diameter | 19 mm |
| Number of Circuit Breakers | 2 |
| Number of residual current circuit breakers | 0 |
| Number of CX sockets | 0 |
| Connected Object | Yes |
| Method of operation | Red, Zigbee |
| App download platform | Not applicable |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | Yes |
| Programming medium | Web software |
| Product usage function | Power Distribution |
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | Yes |
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Temperature measurement (EF006229) | Yes |
| With mounting material (EF006009) | Yes |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Number of USB connections (EF008500) | 0 |
| Over voltage category (EF006785) | 2 |
| Control function (EF002685) | Yes |
| Evaluation (EF007670) | Other |
| With surge protection module (EF017068) | No |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Mounting direction (EF003824) | Vertical |
| With display (EF000458) | No |
| Electrical connection (EF003701) | Connecting cord with plug |
| Cable length (EF000536) | 3 m |
| Ampere meter (EF006555) | Yes |
| Number of miniature circuit breakers (MCB) (EF005564) | 2 |
| Number of phases (EF000351) | 1 |
| Switchable (EF008037) | Yes |
| Mounting dimension (standardised) (EF000397) | Metric |
| Number of C13 socket outlets (EF008511) | 20 |
| Number of other socket outlets (EF006579) | 0 |
| Number of C20 socket outlets (EF008512) | 0 |
| Number of C19 socket outlets (EF008513) | 2 |
| Number of socket outlets with earth pin (EF006578) | 22 |
| Type of electric connection (EF003961) | CEE 32 A |
| With fuse (EF006693) | No |
| Number of RJ45 connections (EF009462) | 2 |
| SNMP (EF005284) | Yes |
| Mains filter (EF000947) | No |
| Mounting size (EF020751) | 1276 mm |
| Supply voltage (EF000104) | 230 V |
| Depth (EF000049) | 65.9 mm |
| Colour (EF000007) | Black |
| Length (EF001438) | 1264 mm |
| Width (EF000008) | 44.3 mm |
| With meter (EF016044) | Yes |
