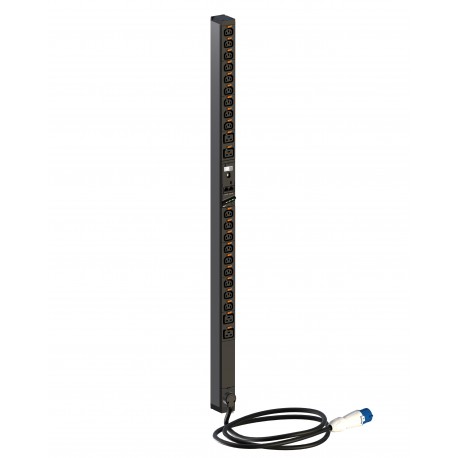

LEGRAND 646102 646102 LEGRAND PDU LK BA 0U 1P16A 8 C13 4 C19 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

646102 LEGRAND PDU LK BA 0U 1P16A 8 C13 4 C19

646102

646102

LEGRAND

1 Pcs.

PDU LK BA 0U 1P16A 8 C13 4 C19 Smart PDU, Metered (Base Version), Zero-U, Single Phase 16 A, 18 x C13 + 4 x C19 Outlets, with Cable Lock PDU BASE SIZE 0U, 1 PHASE 16A, 18 C13+4 C19 LOCKING SOCKETS, IEC 60309

Automation > Power distribution unit (PDU)
PDU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 646102 functions as a power distribution unit engineered to provide stable, organized electrical outlets inside server racks. These distribution units ensure that rack-mounted components receive continuous power from structured branch circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With LED indication (EF005950): Yes
  • Number of socket outlets Swiss standard type 25 (EF011979): 0
  • Number of socket outlets Swiss standard type 23 (EF011978): 0
  • Number of socket outlets Swiss standard type 15 (EF011977): 0
  • Temperature measurement (EF006229): Yes
  • With mounting material (EF006009): Yes
  • Number of socket outlets Swiss standard type 13 (EF011975): 0
  • Number of USB connections (EF008500): 0
  • Over voltage category (EF006785): 2
  • Control function (EF002685): No
  • With surge protection module (EF017068): No
  • Number of socket outlets British Standard BS 1363 (EF012037): 0
  • Mounting direction (EF003824): Vertical
  • With display (EF000458): No
  • Electrical connection (EF003701): Connecting cord with plug
  • Cable length (EF000536): 3 m

More info

▲
Mounting Dimension (Standardized)Metric
Mounting Size1125 mm
Assembly DirectionVertical
Electrical connectionWired connector
Running the electrical connectionEEC 16 A
Number of phases1
Cable length3 m
Number of circuit breakers0
Number of sockets with EEC 7/3 protective contact (type F)0
Number of French Standard Sockets (Type E)22
Number of sockets C1318
Number of sockets C194
Number of C20 sockets0
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of RJ45 connectors2
Number of USB connections0
Number of other power outlets0
Longitude1113 mm
Width44.3 mm
Depth65.9 mm
Nominal intensity16 A
Supply voltage230 V
With surge protection moduleNo
Surge Category2
EMC FilterNo
SwitchableNo
With measuring deviceYes
Control functionNo
SNMPYes
With screenNo
EvaluationOther
With LED indicatorYes
FusedNo
AmmeterYes
Temperature MeasurementYes
Includes mounting hardwareYes
ColourBlack
Impact resistanceNot applicable
Protection Class (IP)IP40
Operating Temperature-5-60 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal current16-16 A
frequency50-60 Hz
Display of markings on the connection terminalsNo
RAL number9017
Connection MethodScrew-on terminal
Terminal capacity2.5-2.5 mm²
Connection Cable TypeFlexible
Core cross-section2.5-2.5 mm²
Maximum cable entry diameter19 mm
Number of Circuit Breakers0
Number of residual current circuit breakers0
Number of CX sockets0
Connected ObjectYes
Method of operationRed, Zigbee
App download platformNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Programming mediumWeb software
Product usage functionPower Distribution
