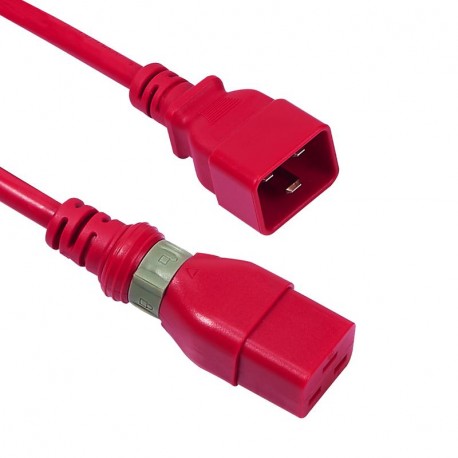

644209 LEGRAND 10 C20-C19 LOCK 2M RG CABLES
644209
644209
LEGRAND
1 Pcs.
10 C20-C19 LOCK 2M RG CABLES
Set of 10 C20-C19 2m power cables with red plug lock
Automation > Power cord
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 644209 is a robust electrical connection cable applied in industrial environments for safe power distribution. Such cables provide reliable performance for linking sensitive electronic equipment and server hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable entry connection 1: Straight
- Cable entry connection 2: Straight
- System of connectors connected to the system: No
- Number of threads: 3
- Nominal Conductor Section: 1.5 mm²
- Longitude: 2 m
- Cover material: Polyvinyl chloride (PVC)
- Temperature resistance: -20-70 °C
- Nominal intensity: 10 A
- Nominal Voltage: 250-250 V
- Outer Cover Color: Red
- Coiled cable: No
- With cable switch: No
- Outer diameter approx.: 8.5 mm
- Halogen-free: No
- Number of cores (EF001792): 3
More info
▲
Power cables used to connect active equipment (servers) to a PDU. The unique C19 plug swivel mechanism, which fits any standard C20 input, prevents accidental disconnection from the server.
| Connection 1 | Other |
|---|---|
| Cable entry connection 1 | Straight |
| Connection 2 | Other |
| Cable entry connection 2 | Straight |
| System of connectors connected to the system | No |
| Number of threads | 3 |
| Nominal Conductor Section | 1.5 mm² |
| Longitude | 2 m |
| Cover material | Polyvinyl chloride (PVC) |
| Temperature resistance | -20-70 °C |
| Nominal intensity | 10 A |
| Nominal Voltage | 250-250 V |
|---|---|
| Outer Cover Color | Red |
| Coiled cable | No |
| With cable switch | No |
| Outer diameter approx. | 8.5 mm |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Halogen-free | No |
