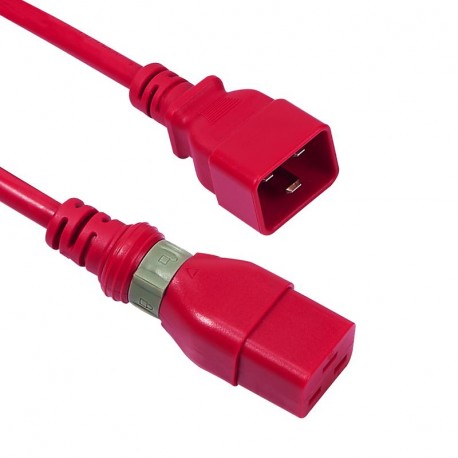

644208 LEGRAND 10 C20-C19 LOCK 1.5M R CABLES
644208
644208
LEGRAND
1 Pcs.
Automation > Power cord
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built to prevent accidental power interruptions, this Legrand locking cable secures critical connections within distribution equipment and racks. Color-coded locking cords simplify circuit identification and protect sensitive loads from mechanical strain. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable entry connection 1: Straight
- Cable entry connection 2: Straight
- System of connectors connected to the system: No
- Number of threads: 3
- Nominal Conductor Section: 1.5 mm²
- Longitude: 1.5 m
- Cover material: Polyvinyl chloride (PVC)
- Temperature resistance: -20-70 °C
- Nominal intensity: 10 A
- Nominal Voltage: 250-250 V
- Outer Cover Color: Red
- Coiled cable: No
- With cable switch: No
- Outer diameter approx.: 8.5 mm
- Halogen-free: No
- Number of cores (EF001792): 3
More info
▲| Connection 1 | Other |
|---|---|
| Cable entry connection 1 | Straight |
| Connection 2 | Other |
| Cable entry connection 2 | Straight |
| System of connectors connected to the system | No |
| Number of threads | 3 |
| Nominal Conductor Section | 1.5 mm² |
| Longitude | 1.5 m |
| Cover material | Polyvinyl chloride (PVC) |
| Temperature resistance | -20-70 °C |
| Nominal intensity | 10 A |
| Nominal Voltage | 250-250 V |
|---|---|
| Outer Cover Color | Red |
| Coiled cable | No |
| With cable switch | No |
| Outer diameter approx. | 8.5 mm |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Halogen-free | No |
