LEGRAND 644202 644202 LEGRAND 10 CABLES C20-C19 LOCK 1.5MM N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

644202 LEGRAND 10 CABLES C20-C19 LOCK 1.5MM N

644202

644202

LEGRAND

1 Pcs.

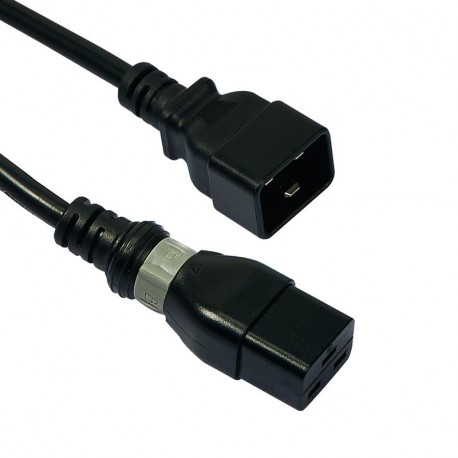

10 CABLES C20-C19 LOCK 1.5MM N Set of 10 C20-C19 1.5m power cables with black plug lock

Automation > Power cord
VARIOUS VDI

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 644202 is an industrial cable assembly utilized for power distribution and secure equipment connections within electrical enclosures or server racks. Power cables of this type safely link electrical devices to power sources in commercial and industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable entry connection 1: Straight
  • Connection type according to IEC 60320, connection 2: C1
  • Cable entry connection 2: Straight
  • System of connectors connected to the system: No
  • Number of threads: 3
  • Nominal Conductor Section: 1.5 mm²
  • Longitude: 1.5 m
  • Cover material: Polyvinyl chloride (PVC)
  • Temperature resistance: -20-70 °C
  • Nominal intensity: 10 A
  • Nominal Voltage: 250-250 V
  • Outer Cover Color: Black
  • Coiled cable: No
  • With cable switch: No
  • Outer diameter approx.: 8.5 mm
  • Halogen-free: No

More info

▲
Power cables used to connect active equipment (servers) to a PDU. The unique C19 plug swivel mechanism that fits any standard C20 input prevents accidental disconnection from the server.
Connection 1Other
Cable entry connection 1Straight
Connection 2Other
Connection type according to IEC 60320, connection 2C1
Cable entry connection 2Straight
System of connectors connected to the systemNo
Number of threads3
Nominal Conductor Section1.5 mm²
Longitude1.5 m
Cover materialPolyvinyl chloride (PVC)
Temperature resistance-20-70 °C
Nominal intensity10 A
Nominal Voltage250-250 V
Outer Cover ColorBlack
Coiled cableNo
With cable switchNo
Outer diameter approx.8.5 mm
Reaction class to fire according to EN 13501-6none
Reaction to fire according to EN 13501-6: Smoke productionnone
Reaction to fire according to EN 13501-6: Flammable drops/particlesnone
Reaction to fire according to EN 13501-6: Aciditynone
Halogen-freeNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
