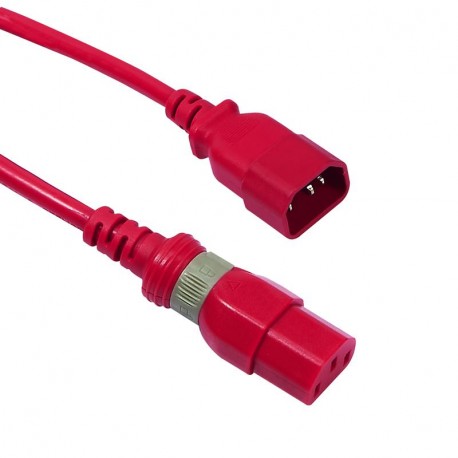

644108 LEGRAND 10 C14-C13 LOCK 1.5M R CABLES
644108
644108
LEGRAND
1 Pcs.
10 C14-C13 LOCK 1.5M R CABLES
Set of 10 C14-C13 power cables of 1.5m with red plug lock
Automation > Power cord
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 644108 is a durable electrical cable utilized to establish secure power links between compatible devices in control cabinets. These components ensure uninterrupted power distribution across various automation and enclosure applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable entry connection 1: Straight
- Cable entry connection 2: Straight
- System of connectors connected to the system: No
- Number of threads: 3
- Nominal Conductor Section: 1 mm²
- Longitude: 1.5 m
- Cover material: Polyvinyl chloride (PVC)
- Temperature resistance: -20-70 °C
- Nominal intensity: 10 A
- Nominal Voltage: 250-250 V
- Outer Cover Color: Red
- Coiled cable: No
- With cable switch: No
- Outer diameter approx.: 7 mm
- Halogen-free: No
- Number of cores (EF001792): 3
More info
▲
Power cables used to connect active equipment (servers) to a PDU. The unique C13 plug swivel mechanism, which fits any standard C14 input, prevents accidental disconnection from the server.
| Connection 1 | Other |
|---|---|
| Cable entry connection 1 | Straight |
| Connection 2 | Other |
| Cable entry connection 2 | Straight |
| System of connectors connected to the system | No |
| Number of threads | 3 |
| Nominal Conductor Section | 1 mm² |
| Longitude | 1.5 m |
| Cover material | Polyvinyl chloride (PVC) |
| Temperature resistance | -20-70 °C |
| Nominal intensity | 10 A |
| Nominal Voltage | 250-250 V |
|---|---|
| Outer Cover Color | Red |
| Coiled cable | No |
| With cable switch | No |
| Outer diameter approx. | 7 mm |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Halogen-free | No |
