644102 LEGRAND 10 CABLES C14-C13 LOCK 1.5MM N
644102
644102
LEGRAND
1 Pcs.
10 CABLES C14-C13 LOCK 1.5MM N

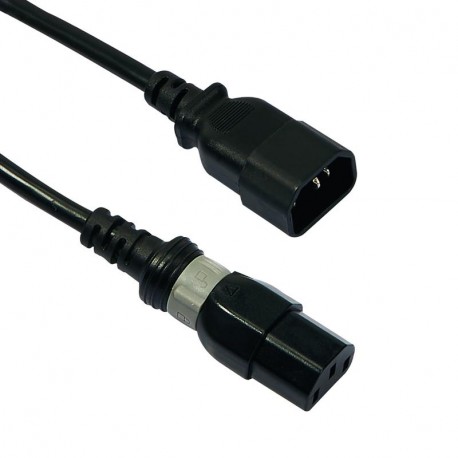

Set of 10 C14-C13 power cables of 1.5m with black plug lock
Automation > Power cord
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 644102 is a standard power cable designed for establishing secure links between electrical devices in professional setups. These industrial cables ensure efficient and safe power transmission across various operational requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable entry connection 1: Straight
- Cable entry connection 2: Straight
- System of connectors connected to the system: No
- Number of threads: 3
- Nominal Conductor Section: 1 mm²
- Longitude: 1.5 m
- Cover material: Polyvinyl chloride (PVC)
- Temperature resistance: -20-70 °C
- Nominal intensity: 10 A
- Nominal Voltage: 250-250 V
- Outer Cover Color: Black
- Coiled cable: No
- With cable switch: No
- Outer diameter approx.: 7 mm
- Halogen-free: No
- Number of cores (EF001792): 3
More info
▲
Power cables used to connect active equipment (servers) to a PDU. The unique C13 plug swivel mechanism that fits any standard C14 input prevents accidental disconnection from the server.
| Connection 1 | Other |
|---|---|
| Cable entry connection 1 | Straight |
| Connection 2 | Other |
| Cable entry connection 2 | Straight |
| System of connectors connected to the system | No |
| Number of threads | 3 |
| Nominal Conductor Section | 1 mm² |
| Longitude | 1.5 m |
| Cover material | Polyvinyl chloride (PVC) |
| Temperature resistance | -20-70 °C |
| Nominal intensity | 10 A |
| Nominal Voltage | 250-250 V |
|---|---|
| Outer Cover Color | Black |
| Coiled cable | No |
| With cable switch | No |
| Outer diameter approx. | 7 mm |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Halogen-free | No |
