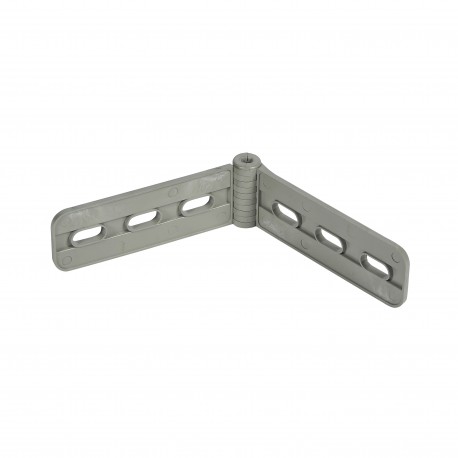

637993 LEGRAND OMEGA-HINGE for L200-600
637993
637993
LEGRAND
20 Pcs.
OMEGA-HINGE for L200-600
Legrand PVC Cable Tray Hinged Coupler for Tray Widths 200mm to 600mm
OMEGA hinge for width trays. s between 200mm and 600mm - Grey
Cables > Connector for cable support system
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand omega-hinge for L200-600 provides a specialized pivoting corner connection for cable support assemblies, allowing installers to navigate angular changes in tray pathways.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for cable support system width (EF008339): 75 mm
- Stainless steel, pickled (EF006388): No
- Model (EF000010): Corner connector
- Suitable for cable tray (EF005166): Yes
- Type of connection (EF000064): Screw connector
- Material (EF002169): Plastic
- Material quality (EF001257): Polyvinyl chloride (PVC)
- Hinged joint vertical (EF006393): No
- Hinged joint horizontal (EF006392): Yes
- Suitable for cable ladder (EF005165): No
- Suitable for wire mesh tray filament (EF005164): 0 mm
- Suitable for wire mesh tray (EF005163): No
- Operating temperature (EF001742): -5 °C
- RAL-number (EF000116): 7030; Length (EF001438): 236 mm
- Suitable for circuit integrity (EF007806): No
More info
▲| Model | Corner connector |
|---|---|
| Hinged joint horizontal | Yes |
| Hinged joint vertical | No |
| Type of connection | Screw connector |
| Suitable for wire mesh tray | No |
| Suitable for cable ladder | No |
| Suitable for cable tray | Yes |
| Suitable for cable support system width | 75-600 mm |
| Suitable for wire mesh tray filament | 0-0 mm |
| Length | 236 mm |
| Suitable for circuit integrity | No |
|---|---|
| Material | Plastic |
| Stainless steel, pickled | No |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Other |
| Operating / setting temperature | -5-60 °C |
| Colour | Other |
| RAL-number | 7030 |
| Storage temperature | -5-60 °C |
| Halogen free | No |
