View larger
Images are for illustrative purposes only. Please refer to data sheet for details

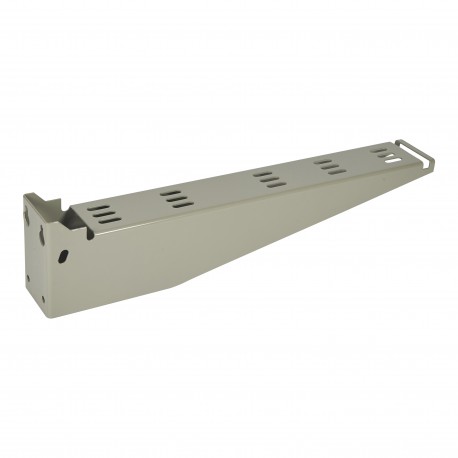

637980 LEGRAND OMEGA-HORIZONTAL SUPPORT 500AC
637980
637980
LEGRAND
2 Pcs.
OMEGA-HORIZONTAL SUPPORT 500AC
Legrand PVC Cable Tray Epoxy Coated Steel Cantilever Arm 500mm
OMEGA Horizontal Stand for L500mm Trays - Epoxy Painted Steel
Cables > Bracket for cable support system
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Length | 550 mm |
|---|---|
| Width | 80 mm |
| Height | 130 mm |
| Suitable for cable support system width | 500-500 mm |
| Model | Wall bracket |
| Angle | 90-90 ° |
| Safe working load according to IEC 61537 | 1700 N |
| Suitable for circuit integrity | No |
| Material | Steel |
|---|---|
| Material quality | Other |
| Surface protection | Other |
| Operating / setting temperature | -20-120 °C |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -20-120 °C |
| Halogen free | Yes |
| Feature Name | Feature Value |
|---|---|
| Suitable for cable support system width (EF008339) | 500 mm |
| Height (EF000040) | 130 mm |
| Model (EF000010) | Wall bracket |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Angle (EF005434) | 90 ° |
| Safe working load according to IEC 61537 (EF016305) | 1700 N |
| Operating temperature (EF001742) | -20 °C |
| Surface protection (EF000139) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7030 |
| Width (EF000008) | 80 mm |
| Length (EF001438) | 550 mm |
| Suitable for circuit integrity (EF007806) | No |
