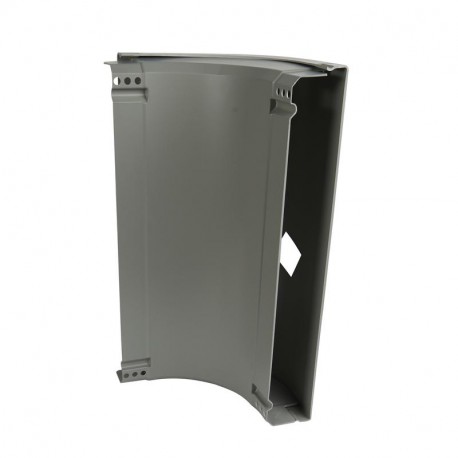

LEGRAND 637947 637947 LEGRAND OMEGA-ANG CONVEX LID 600X100

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

637947 LEGRAND OMEGA-ANG CONVEX LID 600X100

Name: 637947 LEGRAND OMEGA-ANG CONVEX LID 600X100
Brand: LEGRAND
SKU: 637947

Reference: 637947

Code: 637947

Manufacturer: LEGRAND

Units per package: 1 Pcs.

Description:

OMEGA-ANG CONVEX LID 600X100 Legrand PVC Cable Tray 90° Outside Riser with Cover 600mm x 100mm OMEGA convex angle with lid - 600x100 - Grey

Categories:
Cables > Bend for cable tray
OMEGA PVC TRAYS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand convex lid component number 637947 serves as an engineered protective enclosure element for descending vertical cable routing applications. Electrical infrastructure projects utilize specialized covers to safeguard high-capacity wiring assemblies against mechanical hazards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

With cover (EF007965): Yes
NATO-mounting holes (EF006059): No
Stainless steel, pickled (EF006388): No
Model (EF000010): Integrated coupler
Inner radius (EF004793): 150 mm
Change of direction (EF005210): Descending vertically
Material (EF002169): Plastic
Side perforation (EF001122): No
Bottom perforation (EF004545): No
Suitable for cable tray width (EF004820): 600 mm
Material quality (EF001257): Polyvinyl chloride (PVC)
Operating temperature (EF001742): -5 °C
Colour (EF000007): Grey
RAL-number (EF000116): 7030
Suitable for cable tray height (EF004822): 100 mm
Angle (EF001218): 90°

More info

▲

Change of direction	Vertically descending
Angle	90°
Construction type	Bend rigid
With cover	Yes
Inner radius	150 mm
Suitable for cable tray height	100 mm
Suitable for cable tray width	600 mm
Side perforation	No
Bottom perforation	No
NATO-mounting holes	No

Model	Integrated connector
Suitable for circuit integrity	No
Material	Plastic
Stainless steel, pickled	No
Material quality	Polyvinyl chloride (PVC)
Operating / setting temperature	-5-60 °C
Colour	Grey
RAL-number	7030
Storage temperature	-5-60 °C
Halogen free	No
