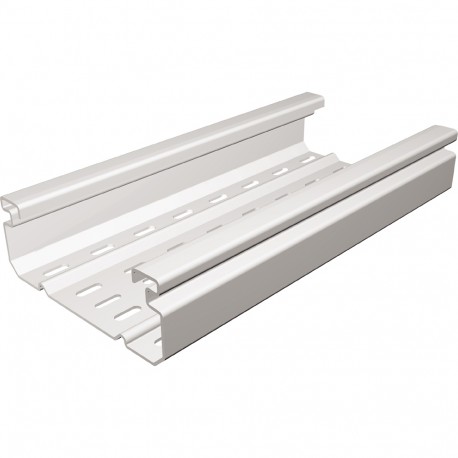

637911 LEGRAND OMEGA-TRAY PERFORADA300X100
637911
637911
LEGRAND
6 m.
OMEGA-TRAY PERFORADA300X100
Legrand PVC Cable Tray Perforated 300mm x 100mm x 3m Length
OMEGA Cable Tray - 300x100 - Perforated - 3m - Grey RAL7030
Cables > Cable tray/wide span cable tray
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Height | 100 mm |
|---|---|
| Width | 300 mm |
| Material thickness | 4 mm |
| Length | 3000 mm |
| Usable cross section | 26728 mm² |
| With cover | No |
| Side perforation | No |
| Bottom perforation | Yes |
| NATO-mounting holes | No |
| Model | Without connector |
| Suitable for circuit integrity | No |
|---|---|
| Material | Plastic |
| Operating / setting temperature | -5-60 °C |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Untreated |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -20-60 °C |
| Halogen free | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 100 mm |
| Material (EF002169) | Plastic |
| Material thickness (EF000386) | 4 mm |
| Bottom perforation (EF004545) | Yes |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Operating temperature (EF001742) | -5 °C |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7030 |
| Suitable for circuit integrity (EF007806) | No |
| With cover (EF007965) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Side perforation (EF001122) | No |
| Useful cross section (EF005140) | 26728 mm² |
| Colour (EF000007) | Grey |
| Length (EF001438) | 3000 mm |
| Width (EF000008) | 300 mm |
