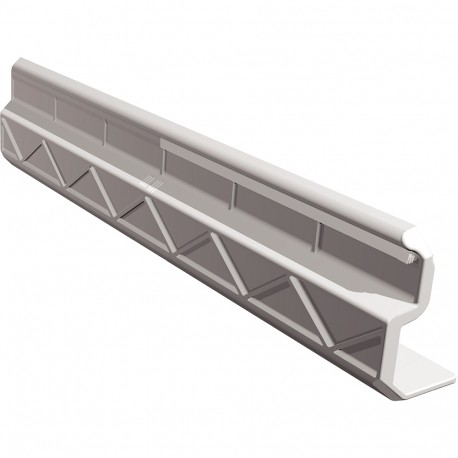

637890 LEGRAND OMEGA-UNION H75 L75/150
637890
637890
LEGRAND
20 Pcs.
OMEGA-UNION H75 L75/150
Legrand PVC Cable Tray Coupler for Tray Height 75mm Widths 75mm to 150mm
OMEGA link for trays 75mm high and 75 to 150mm wide - Grey
Cables > Connector for cable support system
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 637890 is a straight joint designed to seamlessly connect sections in commercial cable support installations. Such components maintain alignment and structural continuity along cable pathways in complex building architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for cable support system width (EF008339): 75 mm
- Stainless steel, pickled (EF006388): No
- Model (EF000010): Straight joint
- Suitable for cable tray (EF005166): Yes
- Type of connection (EF000064): Snapable
- Material (EF002169): Plastic
- Material quality (EF001257): Polyvinyl chloride (PVC)
- Hinged joint vertical (EF006393): No
- Hinged joint horizontal (EF006392): No
- Suitable for cable ladder (EF005165): No
- Suitable for wire mesh tray filament (EF005164): 0 mm
- Suitable for wire mesh tray (EF005163): No
- Suitable for cable support system height (EF015698): 75 mm
- Operating temperature (EF001742): -5 °C
- Colour (EF000007): White
- RAL-number (EF000116): 7030
More info
▲| Model | Longitudinal joint |
|---|---|
| Hinged joint horizontal | No |
| Hinged joint vertical | No |
| Type of connection | Snapable |
| Suitable for wire mesh tray | No |
| Suitable for cable ladder | No |
| Suitable for cable tray | Yes |
| Suitable for cable support system width | 75-150 mm |
| Suitable for cable support system height | 75-75 mm |
| Suitable for wire mesh tray filament | 0-0 mm |
| Length | 275 mm |
| Suitable for circuit integrity | No |
|---|---|
| Material | Plastic |
| Stainless steel, pickled | No |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Other |
| Operating / setting temperature | -5-60 °C |
| Colour | White |
| RAL-number | 7030 |
| Storage temperature | -5-60 °C |
| Halogen free | No |
