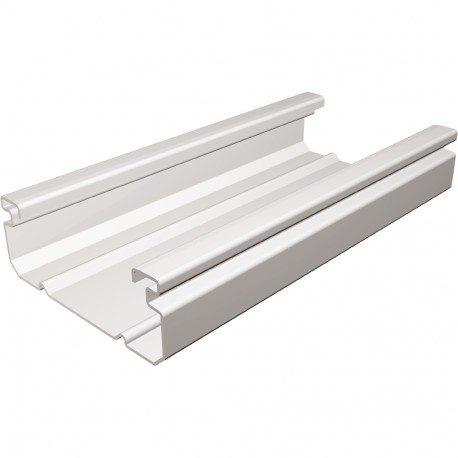

637840 LEGRAND OMEGA-TRAY LISA 300X75
637840
637840
LEGRAND
6 m.
OMEGA-TRAY LISA 300X75
Legrand PVC Cable Tray Unperforated 300mm x 75mm x 3m Length
OMEGA Cable Tray - 300x75 - Smooth - 3m - Grey RAL7030
Cables > Cable tray/wide span cable tray
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 637840 Omega-Tray lisa 300x75 is a solid-bottom cable tray utilized for routing and protecting electrical conductors across structural infrastructures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 75 mm
- Material (EF002169): Plastic
- Material thickness (EF000386): 3.8 mm
- Bottom perforation (EF004545): No
- Material quality (EF001257): Polyvinyl chloride (PVC)
- Operating temperature (EF001742): -5 °C
- Surface protection (EF000139): Untreated
- RAL-number (EF000116): 7030
- Suitable for circuit integrity (EF007806): No
- With cover (EF007965): No
- NATO-mounting holes (EF006059): No
- Model (EF000010): Coupler not included
- Side perforation (EF001122): No
- Useful cross section (EF005140): 19601 mm²
- Colour (EF000007): Grey
- Length (EF001438): 3000 mm
More info
▲| Height | 75 mm |
|---|---|
| Width | 300 mm |
| Material thickness | 3.8 mm |
| Length | 3000 mm |
| Usable cross section | 19601 mm² |
| With cover | No |
| Side perforation | No |
| Bottom perforation | No |
| NATO-mounting holes | No |
| Model | Without connector |
| Suitable for circuit integrity | No |
|---|---|
| Material | Plastic |
| Operating / setting temperature | -5-60 °C |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Untreated |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -20-60 °C |
| Halogen free | No |
