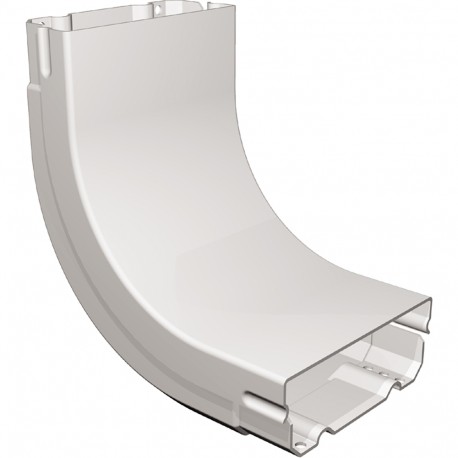

637825 LEGRAND OMEGA-ANG CONCAVE CAP 150X75
637825
637825
LEGRAND
4 Pcs.
OMEGA-ANG CONCAVE CAP 150X75
Legrand PVC Cable Tray 90° Inside Riser with Cover 150mm x 75mm
OMEGA Concave Angle with Lid - 150x75 - Grey
Cables > Bend for cable tray
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A concave cap provides protective enclosure coverage for upward-routing vertical tray fittings, shielding internal wiring from dust and accidental damage. This PVC component fits standard tray dimensions for secure installations.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With cover (EF007965): Yes
- NATO-mounting holes (EF006059): No
- Stainless steel, pickled (EF006388): No
- Model (EF000010): Integrated coupler
- Inner radius (EF004793): 150 mm
- Change of direction (EF005210): Rising vertically
- Material (EF002169): Plastic
- Side perforation (EF001122): No
- Bottom perforation (EF004545): No
- Suitable for cable tray width (EF004820): 150 mm
- Material quality (EF001257): Polyvinyl chloride (PVC)
- Operating temperature (EF001742): -5 °C
- Colour (EF000007): Grey
- RAL-number (EF000116): 7030
- Suitable for cable tray height (EF004822): 75 mm
- Angle (EF001218): 90°
More info
▲| Change of direction | Vertically rising |
|---|---|
| Angle | 90° |
| Construction type | Bend rigid |
| With cover | Yes |
| Inner radius | 150 mm |
| Suitable for cable tray height | 75 mm |
| Suitable for cable tray width | 150 mm |
| Side perforation | No |
| Bottom perforation | No |
| NATO-mounting holes | No |
| Model | Integrated connector |
|---|---|
| Suitable for circuit integrity | No |
| Material | Plastic |
| Stainless steel, pickled | No |
| Material quality | Polyvinyl chloride (PVC) |
| Operating / setting temperature | -5-60 °C |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -5-60 °C |
| Halogen free | No |
