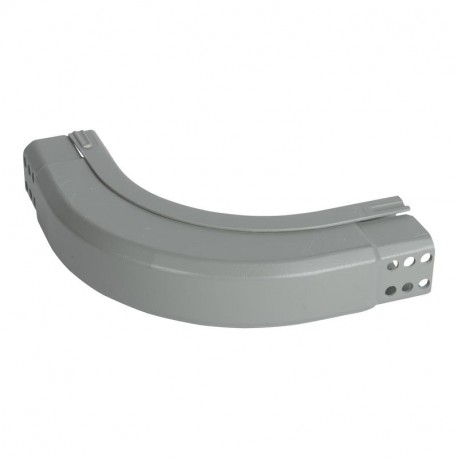

637805 LEGRAND OMEGA-ANG CONCAVE CAP 75X75
637805
637805
LEGRAND
4 Pcs.
OMEGA-ANG CONCAVE CAP 75X75
Legrand PVC Cable Tray 90° Inside Riser with Cover 75mm x 75mm
Concave angle with OMEGA lid - 75x75 - Gray
Cables > Bend for cable tray
OMEGA PVC TRAYS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 637805 Omega-ang concave cap provides targeted protection and enclosure for upward vertical cable tray transitions. The design maintains clean containment standards while shielding internal conductors from ambient exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With cover (EF007965): Yes
- NATO-mounting holes (EF006059): No
- Stainless steel, pickled (EF006388): No
- Model (EF000010): Integrated coupler
- Inner radius (EF004793): 150 mm
- Change of direction (EF005210): Rising vertically
- Material (EF002169): Plastic
- Side perforation (EF001122): No
- Bottom perforation (EF004545): No
- Suitable for cable tray width (EF004820): 75 mm
- Material quality (EF001257): Polyvinyl chloride (PVC)
- Operating temperature (EF001742): -5 °C
- Colour (EF000007): Grey
- RAL-number (EF000116): 7030
- Suitable for cable tray height (EF004822): 75 mm
- Angle (EF001218): 90°
More info
▲| Change of direction | Vertically rising |
|---|---|
| Angle | 90° |
| Construction type | Bend rigid |
| With cover | Yes |
| Inner radius | 150 mm |
| Suitable for cable tray height | 75 mm |
| Suitable for cable tray width | 75 mm |
| Side perforation | No |
| Bottom perforation | No |
| NATO-mounting holes | No |
| Model | Integrated connector |
|---|---|
| Suitable for circuit integrity | No |
| Material | Plastic |
| Stainless steel, pickled | No |
| Material quality | Polyvinyl chloride (PVC) |
| Operating / setting temperature | -5-60 °C |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -5-60 °C |
| Halogen free | No |
