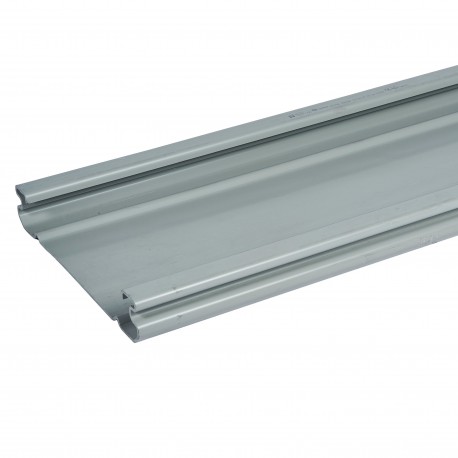

LEGRAND 637740 637740 LEGRAND OMEGA-TRAY LISA 300X50 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

637740 LEGRAND OMEGA-TRAY LISA 300X50

637740

637740

LEGRAND

6 m.

OMEGA-TRAY LISA 300X50 Legrand PVC Cable Tray Unperforated 300mm x 50mm x 3m Length OMEGA Cable Tray - 300x50 - Smooth - 3m - Grey RAL7030

Cables > Cable tray/wide span cable tray
OMEGA PVC TRAYS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand omega-tray lisa 300x50 components provide structured cable routing and mechanical protection for electrical conductors within industrial control panels and cable management systems. These pathways keep wiring organized and secure across complex installations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • Material (EF002169): Plastic
  • Material thickness (EF000386): 3.5 mm
  • Bottom perforation (EF004545): No
  • Material quality (EF001257): Polyvinyl chloride (PVC)
  • Operating temperature (EF001742): -5 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7030
  • Suitable for circuit integrity (EF007806): No
  • With cover (EF007965): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Coupler not included
  • Side perforation (EF001122): No
  • Useful cross section (EF005140): 12825 mm²
  • Colour (EF000007): Grey
  • Length (EF001438): 3000 mm

More info

▲
Height50 mm
Width300 mm
Material thickness3.5 mm
Length3000 mm
Usable cross section12825 mm²
With coverNo
Side perforationNo
Bottom perforationNo
NATO-mounting holesNo
ModelWithout connector
Suitable for circuit integrityNo
MaterialPlastic
Operating / setting temperature-5-60 °C
Material qualityPolyvinyl chloride (PVC)
Surface protectionUntreated
ColourGrey
RAL-number7030
Storage temperature-20-60 °C
Halogen freeNo
