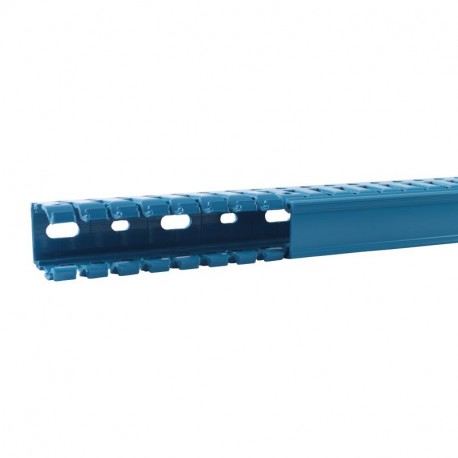

636251 LEGRAND CHANNEL TABLE 40X25 LH BLUE
636251
636251
LEGRAND
56 m.
CHANNEL TABLE 40X25 LH BLUE
Blue halogen-free gutter 25x40mm
Cables > Slotted cable trunking system
CABINET CABLE TRUNKING
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
General features
| Feature Name | Feature Value |
|---|---|
| Distance of slots (EF005246) | 6.5 mm |
| Height (EF000040) | 40 mm |
| With cover (EF007965) | Yes |
| Self-extinguishing (EF000681) | Yes |
| Type of side wall (EF000098) | Hole-/slot punching |
| Material (EF002169) | Acrylonitrile butadiene styrene (ABS) |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Bottom perforation |
| Slit width (EF005247) | 6 mm |
| Flexible (EF000083) | No |
| Useful cross section (EF005140) | 391 mm² |
| Colour (EF000007) | Blue |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 25 mm |
