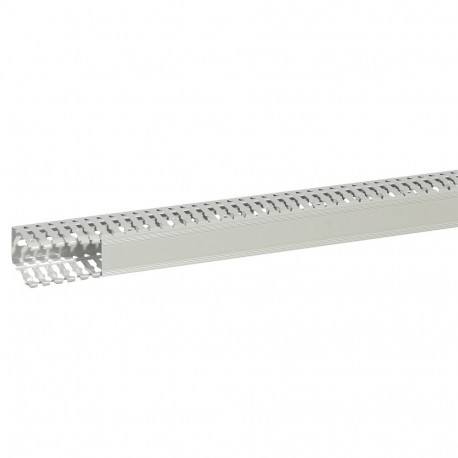

LEGRAND 636207 636207 LEGRAND CHANNEL BOX PC-ABS 60X40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

636207 LEGRAND CHANNEL BOX PC-ABS 60X40

636207

636207

LEGRAND

48 m.

CHANNEL BOX PC-ABS 60X40 Transcab Halogen Free PC/ABS Open Slot Grey Panel Trunking 40mm x 60mm x 2m Length Channel for perforated wall pictures - 40x60mm - Light gray halogen-free

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand channel box pc-abs 60x40 (model number 636207) serves as a protective enclosure element designed to safely route and house internal control wiring and instrumentation cables. Enclosure duct systems are standard in electrical distribution boards to maintain separation between conductors, streamline maintenance procedures, and protect against physical damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 60 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Acrylonitrile butadiene styrene (ABS)
  • Halogen free (EF000025): Yes
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 2007 mm²
  • Colour (EF000007): Grey
  • Length (EF001438): 2000 mm
  • Width (EF000008): 40 mm

More info

▲
Conforms to EN 50085 Parts 2 and 3, UL and CSA Material: PVC self-extinguishing or PC/ABS halogen free Colour: grey RAL 7030 (PVC) or light grey RAL 7035 (PC/ABS) PC/ABS range passes IEC 695-2-1 850°C glow wire test Operating temp.: -5 to +60°C UL classification: UL94 VO Oxygen index: 43% (PVC) or 37% (PC/ABS) EN ISO 4589 (low fume) Metric size body in 2 m lengths (6mm gap/6.5mm finger width) DIN fixing centres of 12.5/25mm Maximum space for cables with good heat dissipation Exit cables at terminal or base level
MaterialAcrylonitrile butadiene styrene (ABS)
Height60 mm
Width40 mm
Length2000 mm
Distance of slots6.5 mm
Slit width6 mm
Type of side wallHole-/slot punching
Halogen freeYes
Self-extinguishingYes
FlexibleNo
Usable cross section2007 mm²
Type of fasteningBottom perforation
With coverYes
ColourGrey
Operating / setting temperature-5-60 °C
Storage temperature-25-60 °C
