View larger
Images are for illustrative purposes only. Please refer to data sheet for details

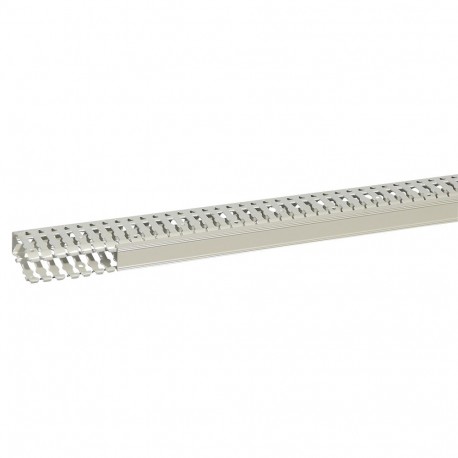

636202 LEGRAND CHANNEL BOX PC-ABS 60X25
636202
636202
LEGRAND
56 m.
CHANNEL BOX PC-ABS 60X25
Transcab Halogen Free PC/ABS Open Slot Grey Panel Trunking 25mm x 60mm x 2m Length
Channel for perforated wall pictures - 25x60mm - Light gray halogen-free
Cables > Slotted cable trunking system
CABINET CABLE TRUNKING
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Conforms to EN 50085 Parts 2 and 3, UL and CSA Material: PVC self-extinguishing or PC/ABS halogen free Colour: grey RAL 7030 (PVC) or light grey RAL 7035 (PC/ABS) PC/ABS range passes IEC 695-2-1 850°C glow wire test Operating temp.: -5 to +60°C UL classification: UL94 VO Oxygen index: 43% (PVC) or 37% (PC/ABS) EN ISO 4589 (low fume) Metric size body in 2 m lengths (6mm gap/6.5mm finger width) DIN fixing centres of 12.5/25mm Maximum space for cables with good heat dissipation Exit cables at terminal or base level
| Material | Acrylonitrile butadiene styrene (ABS) |
|---|---|
| Height | 60 mm |
| Width | 25 mm |
| Length | 2000 mm |
| Distance of slots | 6.5 mm |
| Slit width | 6 mm |
| Type of side wall | Hole-/slot punching |
| Halogen free | Yes |
| Self-extinguishing | Yes |
|---|---|
| Flexible | No |
| Usable cross section | 1159 mm² |
| Type of fastening | Bottom perforation |
| With cover | Yes |
| Colour | Grey |
| Operating / setting temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
| Feature Name | Feature Value |
|---|---|
| Distance of slots (EF005246) | 6.5 mm |
| Height (EF000040) | 60 mm |
| With cover (EF007965) | Yes |
| Self-extinguishing (EF000681) | Yes |
| Type of side wall (EF000098) | Hole-/slot punching |
| Material (EF002169) | Acrylonitrile butadiene styrene (ABS) |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Bottom perforation |
| Slit width (EF005247) | 6 mm |
| Flexible (EF000083) | No |
| Useful cross section (EF005140) | 1159 mm² |
| Colour (EF000007) | Grey |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 25 mm |
