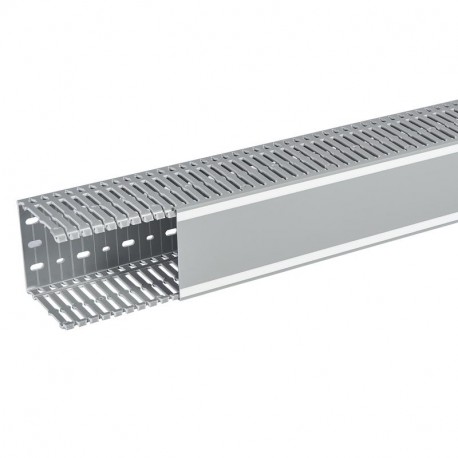

LEGRAND 636022 636022 LEGRAND CABLE CHANNEL LINA25 100X100GRIS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

636022 LEGRAND CABLE CHANNEL LINA25 100X100GRIS

636022

636022

LEGRAND

16 m.

CABLE CHANNEL LINA25 100X100GRIS Lina25 Channel 100x100mm PVC gray RAL7030 - L. 2m

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cable channel Lina25 100x100gris is utilized within electrical control panels to secure, conceal, and route heavy bundles of control and power wiring safely. By separating circuits neatly, these trunking channels protect sensitive conductors from physical damage and maintain clean layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 100 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Polyvinyl chloride (PVC)
  • Halogen free (EF000025): No
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 8960 mm²
  • Colour (EF000007): Grey
  • Length (EF001438): 2000 mm
  • Width (EF000008): 100 mm
