View larger
Images are for illustrative purposes only. Please refer to data sheet for details

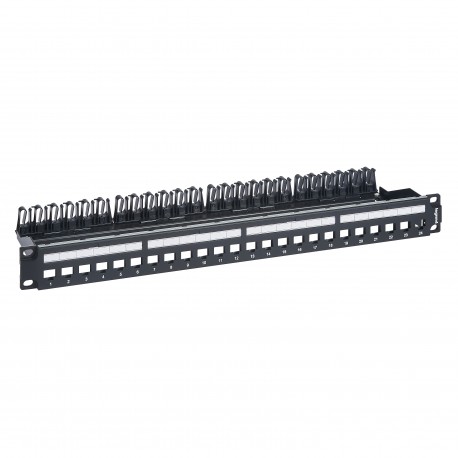

632850 LEGRAND LKC-PANEL 24 RJ45 KS TO EQUIP
632850
632850
LEGRAND
1 Pcs.
LKC-PANEL 24 RJ45 KS TO EQUIP
24 RJ45 Category 5e, 6 or 6A Keystone Patch Panel to Equip with Wire Rope Bracket
Keystone 24 RJ45 Category 5e, 6 or 6A Patch Panel
Automation > Patch panel copper (twisted pair)
RJ45 PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Empty patch panel for 24 category 6A, category 6 or category 5e keystone connectors with metal cable support to be equipped with RJ45 connectors.
specifications
| Number of plugs/couplings | 24 |
|---|---|
| Suitable for the number of sockets/couplings | 24 |
| Connector Type | RJ45 8(8) |
| Armor | Yes |
| Number of Height Units (AU) | 1 |
| Colour | Black |
| RAL number | 9017 |
| Type of mounting | 482.2 mm (19 inch) mount |
| Height | 43.8 mm |
| Width | 482.6 mm |
| Depth | 140 mm |
| Grade2TV compatible according to XP-C 90-483 | No |
|---|---|
| Grade3TV compatible according to XP-C 90-483 | No |
| Impact resistance | IK04 |
| Operating Temperature | -10-60°C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | Yes |
| Cable Holder | With zigzag |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43.8 mm |
| Number of height units (EF003561) | 1 |
| Screened (EF000881) | Yes |
| Mounting method (EF000003) | 482.6 mm (19 inch) mounting |
| Connection type (EF000124) | Other |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | No |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | No |
| Number of buses/couplings (EF004395) | 24 |
| Depth (EF000049) | 140 mm |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9017 |
| Suitable for number of connectors (EF001579) | 24 |
| Width (EF000008) | 482.6 mm |
| Type of connector (EF002935) | RJ45 8(8) |
