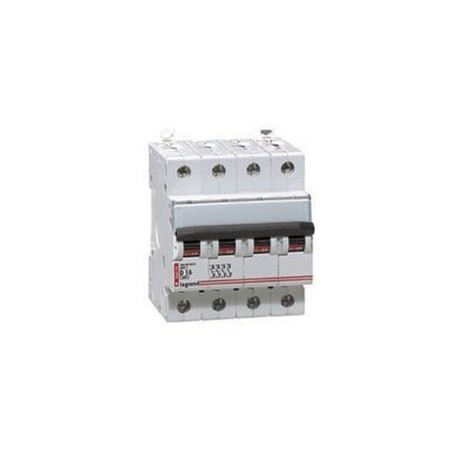

LEGRAND 603086 603086 LEGRAND ICP-M 4P 40A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603086 LEGRAND ICP-M 4P 40A

603086

603086

LEGRAND

1 Pcs.

ICP-M 4P 40A ICP-M - Switch power control 4 P - 400 V~ - 40 A - 4 mód. ICP-M - Power control switch 4 P - 400V~ - 40A - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 603086 is an industrial control circuit breaker used to disconnect electrical loads automatically during fault occurrences, protecting panel wiring and downstream devices. Its multi-pole architecture allows comprehensive phase isolation in complex distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 71.2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 40 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Tetrapolar 400 V~ - Curve ICP-M - nominal Intensity: 40 A - Number of modules: 4

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
