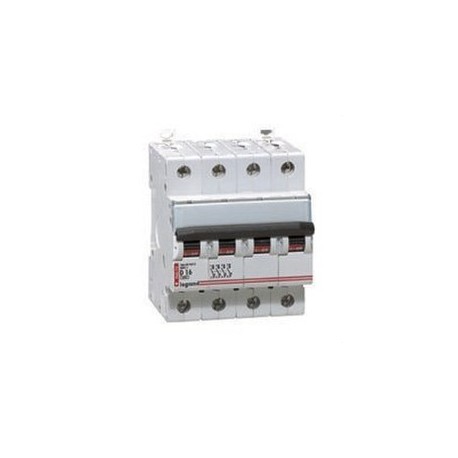

LEGRAND 603084 603084 LEGRAND ICP-M 4P 30A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603084 LEGRAND ICP-M 4P 30A

603084

603084

LEGRAND

1 Pcs.

ICP-M 4P 30A ICP-M - Switch power control 4 P - 400 V~ - 30 - 4 mód. ICP-M - Power control switch 4 P - 400V~ - 30A - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

603084 LEGRAND ICP-M 4P 30A is a Legrand circuit breaker utilized in electrical distribution boards to regulate power flow and protect installations against overloads. Circuit protection devices ensure operational safety by automatically disconnecting power supplies during faults, thereby preventing electrical fires and equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 71.2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 30 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Tetrapolar 400 V~ - Curve ICP-M - nominal Intensity: 30 - Number of modules: 4

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
