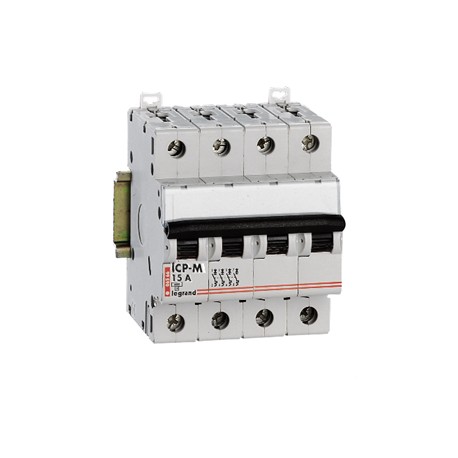

LEGRAND 603081 603081 LEGRAND ICP-M 4P 15A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603081 LEGRAND ICP-M 4P 15A

603081

603081

LEGRAND

1 Pcs.

ICP-M 4P 15A ICP-M - Switch power control 4 P - 400 V~ - 15 A - 4 mód. ICP-M - Power control switch 4 P - 400V~ - 15A - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

603081 LEGRAND ICP-M 4P 15A is a multi-pole circuit protection device utilized to disconnect electrical power safely when faults or overcurrents are detected. This component is commonly installed in electrical distribution boards to monitor and protect complex circuits against operational overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 71.2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 15 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Tetrapolar 400 V~ - Curve ICP-M - rated current: 15 - Number of modules: 4

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
