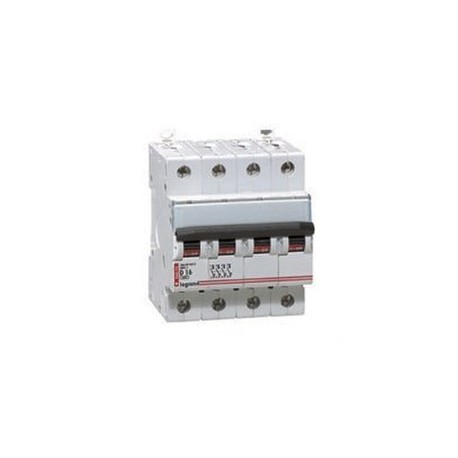

LEGRAND 603080 603080 LEGRAND ICP-M 4P 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603080 LEGRAND ICP-M 4P 10A

603080

603080

LEGRAND

1 Pcs.

ICP-M 4P 10A ICP-M - Switch power control 4 P - 400 V~ - 10 A - 4 mód. ICP-M - Power control switch 4 P - 400V~ - 10A - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Control and protection of electrical circuits are maintained through specialized modular switchgear like the Legrand 603080 ICP-M 4P 10A. Units of this type interrupt abnormal current flows to safeguard downstream equipment and prevent electrical hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 71.2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 10 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Tetrapolar 400 V~ - Curve ICP-M - rated current: 10 A - Number of modules: 4

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
