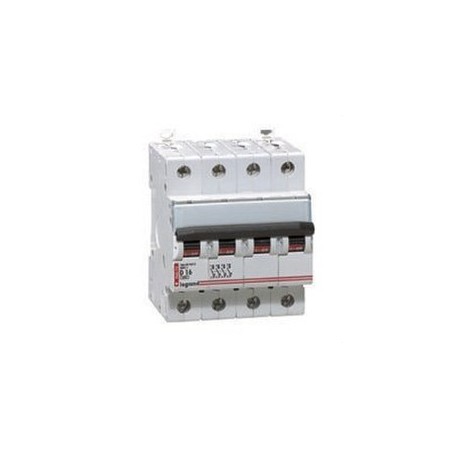

LEGRAND 603078 603078 LEGRAND ICP-M 4P 5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603078 LEGRAND ICP-M 4P 5A

603078

603078

LEGRAND

1 Pcs.

ICP-M 4P 5A ICP-M - Switch power control 4 P - 400 V~ - 5 To - 4 mód. ICP-M - Power control switch 4 P - 400V~ - 5A - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 603078 LEGRAND ICP-M 4P 5A functions as a multi-pole circuit control and protection device designed for specialized electrical distribution requirements. Such components regulate power flow and offer reliable safeguarding against overcurrent faults in professional installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 71.2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 5 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Tetrapolar 400 V~ - Curve ICP-M - rated current: 5 - Number of modules: 4

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
