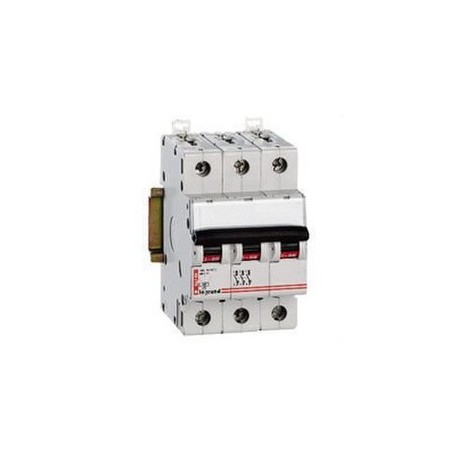

LEGRAND 603055 603055 LEGRAND ICP-M 3P 35A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603055 LEGRAND ICP-M 3P 35A

603055

603055

LEGRAND

1 Pcs.

ICP-M 3P 35A ICP-M Switch - control of power 3 P - 400 V~ - 35 To - 3 mód. ICP-M - Power control switch 3 P - 400V~ - 35A - 3mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 603055 LEGRAND ICP-M 3P 35A is a three-pole control and protection circuit breaker designed to manage and secure electrical distribution networks. These units are commonly installed in service panels to monitor current draw and disconnect circuits safely during overloads or short-circuit events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 53.4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 35 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M three-pole 400 V~ - Curve ICP-M - rated current: 35 - Number of modules: 3

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
