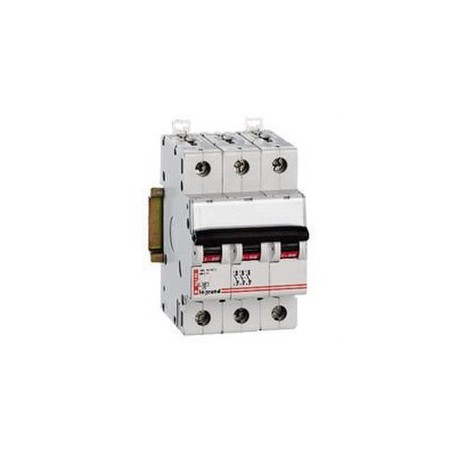

LEGRAND 603052 603052 LEGRAND ICP-M 3P 20A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603052 LEGRAND ICP-M 3P 20A

603052

603052

LEGRAND

1 Pcs.

ICP-M 3P 20A ICP-M Switch - control of power 3 P - 400 V~ - 20 A - 3 mód. ICP-M - Power control switch 3 P - 400V~ - 20A - 3mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 603052 ICP-M 3P 20A is a three-pole circuit protection device utilized in electrical distribution layouts to interrupt fault currents and protect downstream wiring from thermal overloads. Devices of this type are standard installations in commercial and industrial control panels for reliable branch circuit safeguarding.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 53.4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 20 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M three-pole 400 V~ - Curve ICP-M - rated current: 20 - Number of modules: 3

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
