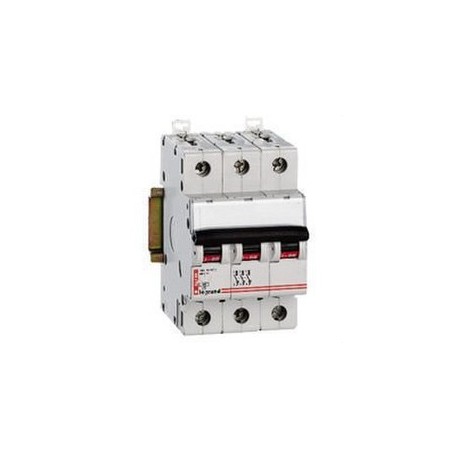

LEGRAND 603050 603050 LEGRAND ICP-M 3P 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603050 LEGRAND ICP-M 3P 10A

603050

603050

LEGRAND

1 Pcs.

ICP-M 3P 10A ICP-M Switch - control of power 3 P - 400 V~ - 10 A - 3 mód. ICP-M - Power control switch 3 P - 400V~ - 10A - 3mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 603050 ICP-M 3P 10A serves as a thermal-magnetic circuit breaker designed to protect electrical distribution circuits against overloads and short circuits. These units trip automatically to isolate faulty sections of an electrical installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 53.4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 10 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M three-pole 400 V~ - Curve ICP-M - rated current: 10 A - Number of modules: 3

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
