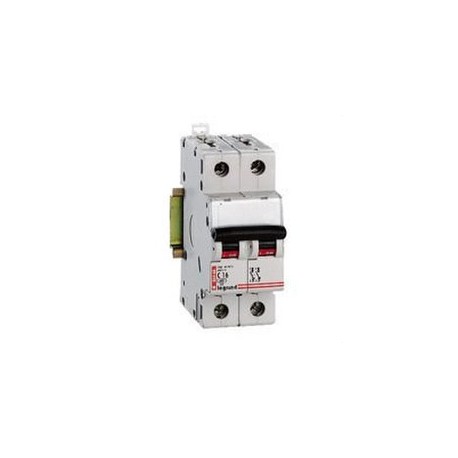

603043 LEGRAND ICP-M 2P 50A
603043
603043
LEGRAND
5 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
603043 LEGRAND ICP-M 2P 50A functions as a Legrand circuit breaker built to protect electrical distribution lines from overloads and short circuits in commercial or industrial environments. Such modular protection units ensure reliable circuit isolation and safeguard equipment from electrical faults.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 2
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 35.6
- Rated insulation voltage Ui (EF001366): 500 V
- Over voltage category (EF002569): 3
- Rated current (EF000227): 50 A
- Current limiting class (EF002568): 3
