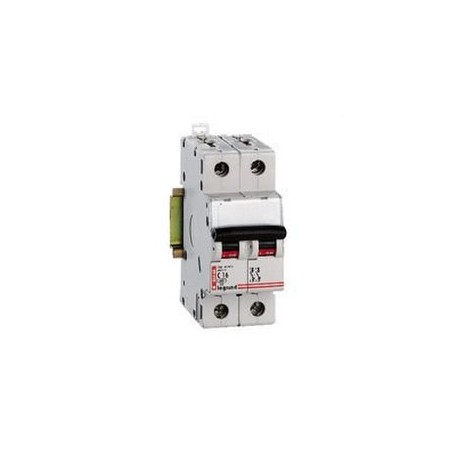

LEGRAND 603039 603039 LEGRAND ICP-M 2P 30A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603039 LEGRAND ICP-M 2P 30A

603039

603039

LEGRAND

5 Pcs.

ICP-M 2P 30A ICP-M Switch - control of power 2 P - 230/400 V~ - 30 - 2 mód. ICP-M - Power control switch 2 P - 230/400V~ - 30A - 2mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a primary protective interface, the Legrand 603039 ICP-M 2P 30A circuit breaker controls and limits electrical current in building installations and control cabinets. Devices of this specification manage incoming power distribution while disconnecting loads automatically during overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 2
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 35.6
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 30 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M Bipolar 230/400 V~ - Curve ICP-M - nominal Intensity: 30 - Number of modules: 2

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
