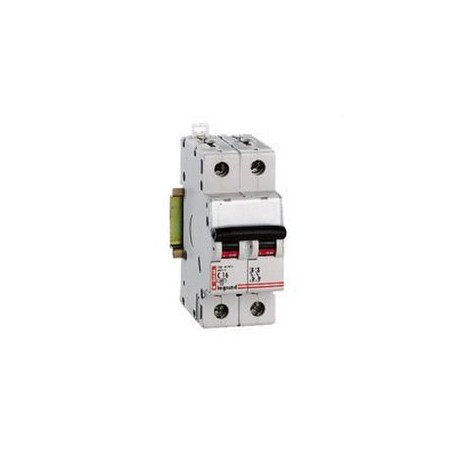

603035 LEGRAND ICP-M 2P 10A
603035
603035
LEGRAND
5 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 603035 LEGRAND ICP-M 2P 10A acts as a vital safeguard against electrical overloads, automatically interrupting current flow during system faults. Circuit breakers are widely integrated into electrical enclosures and distribution boards to protect wiring infrastructure from thermal and magnetic damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 2
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 35.6
- Rated insulation voltage Ui (EF001366): 500 V
- Over voltage category (EF002569): 3
- Rated current (EF000227): 10 A
- Current limiting class (EF002568): 3
