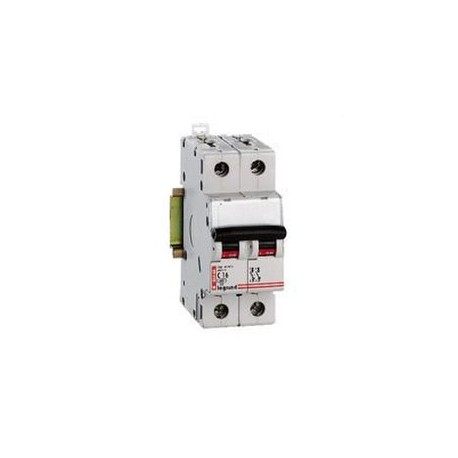

LEGRAND 603026 603026 LEGRAND ICP-M P+N 40A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

603026 LEGRAND ICP-M P+N 40A

603026

603026

LEGRAND

5 Pcs.

ICP-M P+N 40A ICP-M - Switch power control 1 P + N - 230 V~ - 40 - 2 mód. ICP-M - Power control switch 1 P + N - 230V~ - 40A - 2mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ICP-M P+N 40A by Legrand functions as a specialized control and protection switch designed to manage electrical currents within domestic and commercial distribution boards. Circuit breakers of this kind interrupt abnormal current flows to protect downstream equipment.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 35.6
  • Rated insulation voltage Ui (EF001366): 500 V
  • Over voltage category (EF002569): 3
  • Rated current (EF000227): 40 A
  • Current limiting class (EF002568): 3

More info

▲

Product features

Wattage control switch (ICP-M single-Pole + neutral 230 V~ - Curve ICP-M - nominal Intensity: 40 A - Number of modules: 2

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated
