View larger
Images are for illustrative purposes only. Please refer to data sheet for details

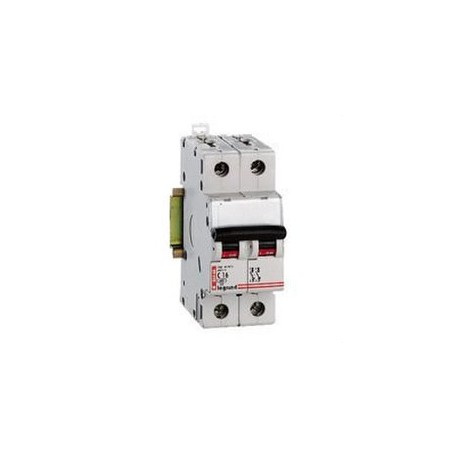

603022 LEGRAND ICP-M P+N 20A
603022
603022
LEGRAND
5 Pcs.
ICP-M P+N 20A
ICP-M - Switch power control 1 P + N - 230 V~ - 20 A - 2 mód.
ICP-M - Power control switch 1 P + N - 230V~ - 20A - 2mod
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Wattage control switch (ICP-M single-Pole + neutral 230 V~ - Curve ICP-M - rated current: 20 - Number of modules: 2General characteristics
Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 6 kA |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 2 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 35.6 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Over voltage category (EF002569) | 3 |
| Rated current (EF000227) | 20 A |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | Other |
| Rated voltage (EF000228) | 230 V |
